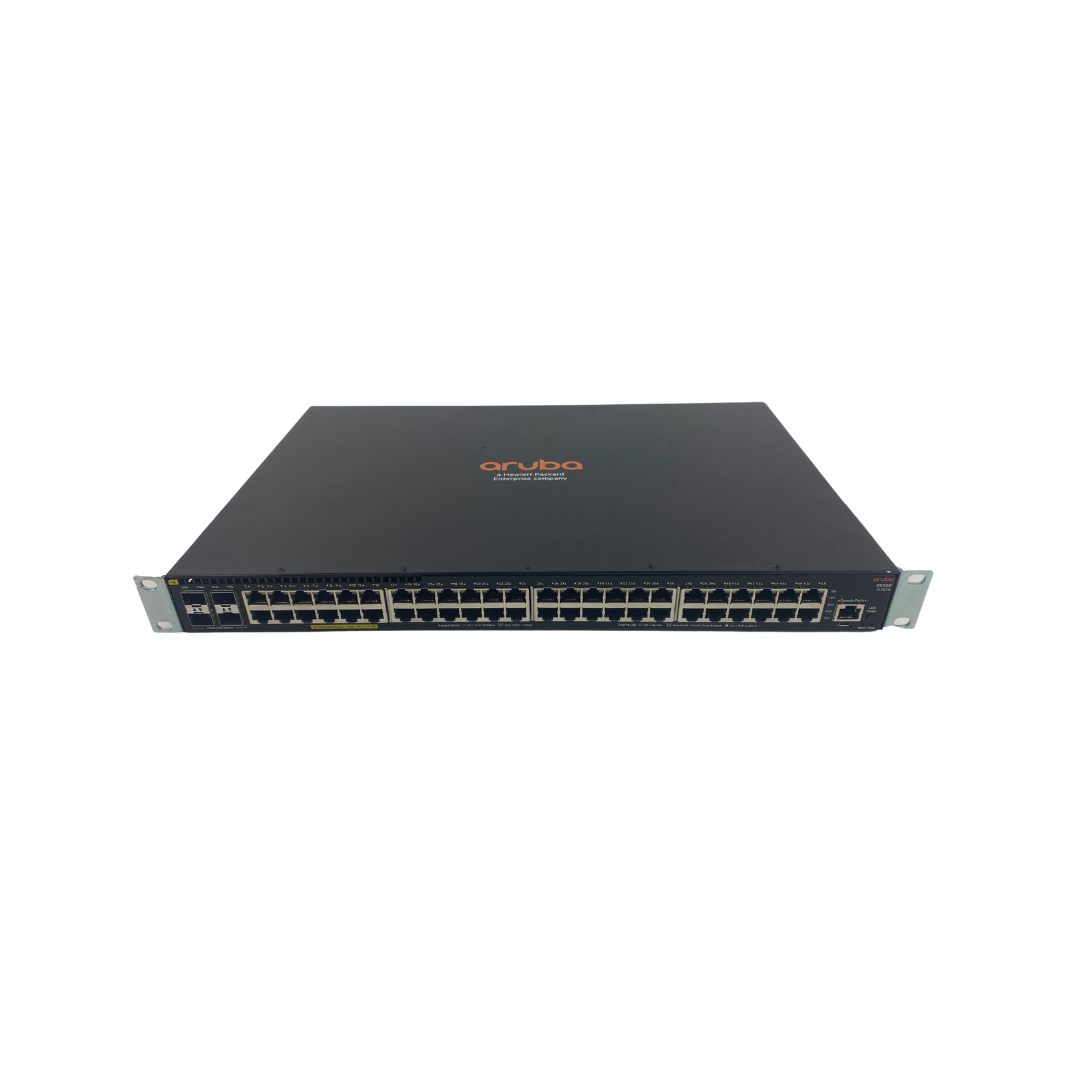

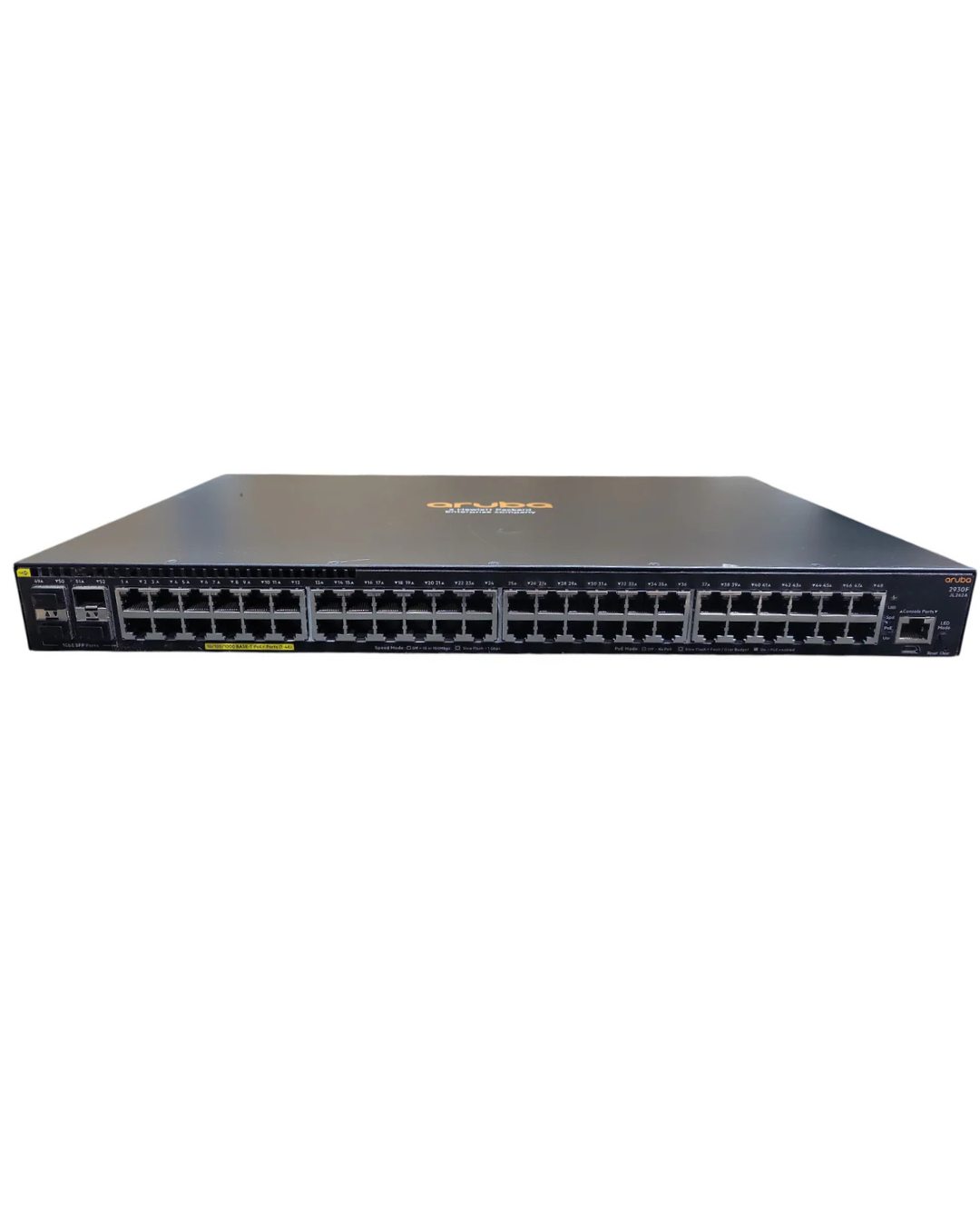

Aruba JL262A 2930F 48G PoE+ 4SFP Switch

The Aruba JL262A is a high‑performance 48‑port Gigabit PoE+ access switch in the Aruba 2930F Series, designed for modern enterprise edge, SMB, and branch office networks. With 48× 10/100/1000BASE‑T PoE+ ports, 4× dedicated Gigabit SFP uplinks, and a 370W PoE+ budget, this switch delivers the power, security, and scalability needed for today’s mobile‑first and IoT‑heavy environments.

Built on the Aruba ProVision ASIC and running the ArubaOS‑Switch operating system, the JL262A provides robust Layer 2 switching, static and RIP routing, Access OSPF, advanced QoS, and strong security features. It integrates seamlessly with Aruba ClearPass, AirWave, and Aruba Central, making it easy to deploy, manage, and secure at scale.

Key Features

• 48× 10/100/1000BASE‑T PoE+ ports (802.3at)
• 4× SFP Gigabit uplink ports
• 370W PoE+ budget for APs, cameras, VoIP, and IoT
• Layer 2 switching + basic Layer 3 routing
• Static routing
• RIP/RIPng
• Access OSPF
• Aruba ProVision ASIC for high performance and low latency
• Advanced security: ACLs, Dynamic ARP Protection, DHCP Snooping
• Robust QoS for voice, video, and real‑time traffic
• Integrated management: Aruba Central, AirWave, ClearPass, Web GUI, CLI
• Zero‑touch deployment and automation‑ready
• Energy‑efficient design with quiet operation

Technical Specifications

• Model: JL262A
• Series: Aruba 2930F
• Access Ports: 48× 10/100/1000BASE‑T PoE+
• Uplinks: 4× SFP (1GbE)
• PoE Budget: 370W
• Switching Capacity: 104 Gbps
• Throughput: 77.4 Mpps
• Latency: < 3.8 μs (1GbE, 64‑byte packets)
• CPU: Dual‑core ARM Cortex @ 1016 MHz
• Memory: 1 GB DDR3 SDRAM
• Packet Buffer: 12.38 MB
• Storage: 4 GB eMMC
• Form Factor: 1U rackmount
• Management: CLI, Web GUI, SNMP, AirWave, Aruba Central

Ideal Use Cases

• Enterprise edge switching
• SMB and branch office deployments
• Wireless access point aggregation
• VoIP and surveillance networks
• IoT and device‑dense environments
• Environments requiring PoE+ and simple L3 routing

What’s Included

• Aruba JL262A 2930F 48G PoE+ 4SFP Switch
• Rackmount kit (brackets + screws)
• Power cord
• Console cable
