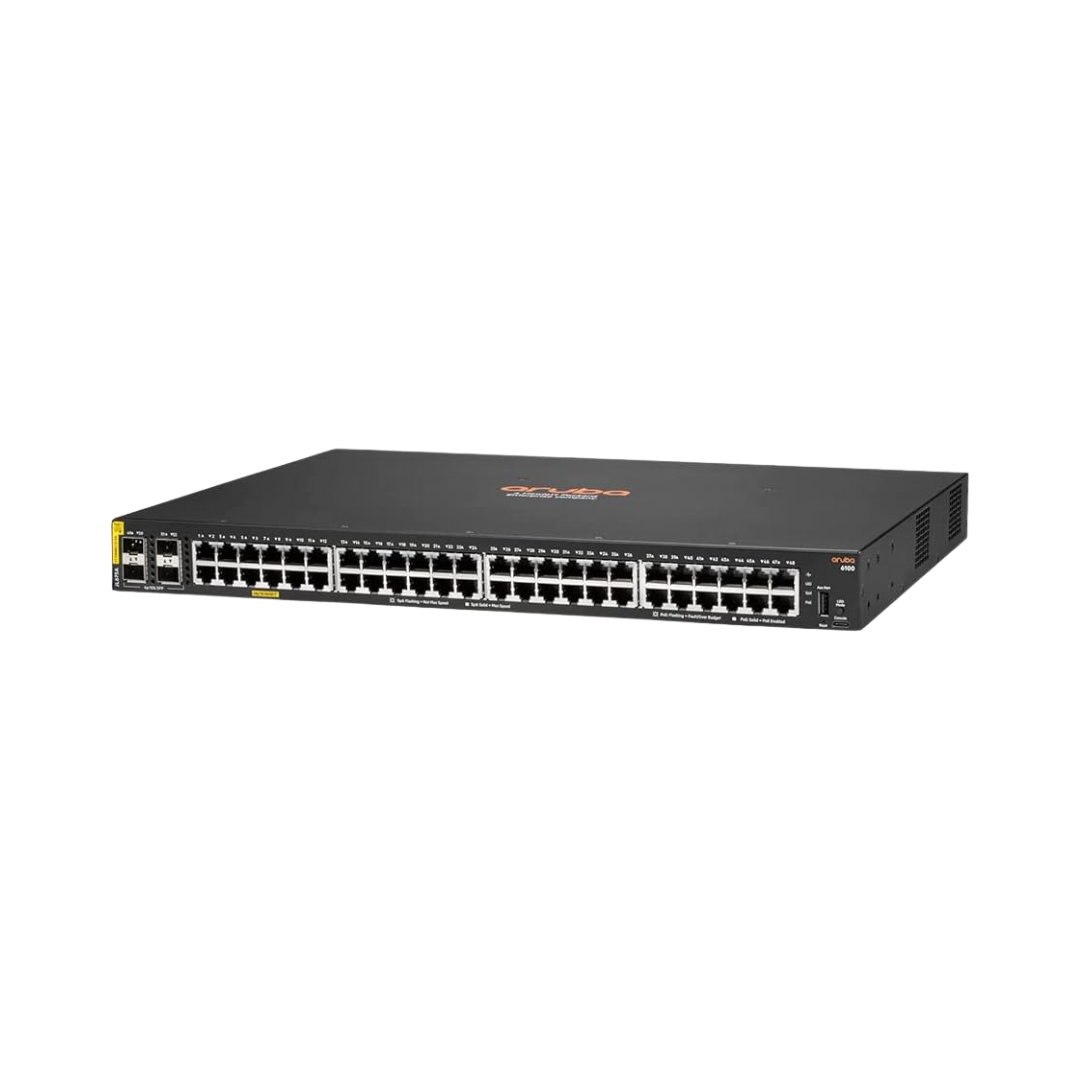

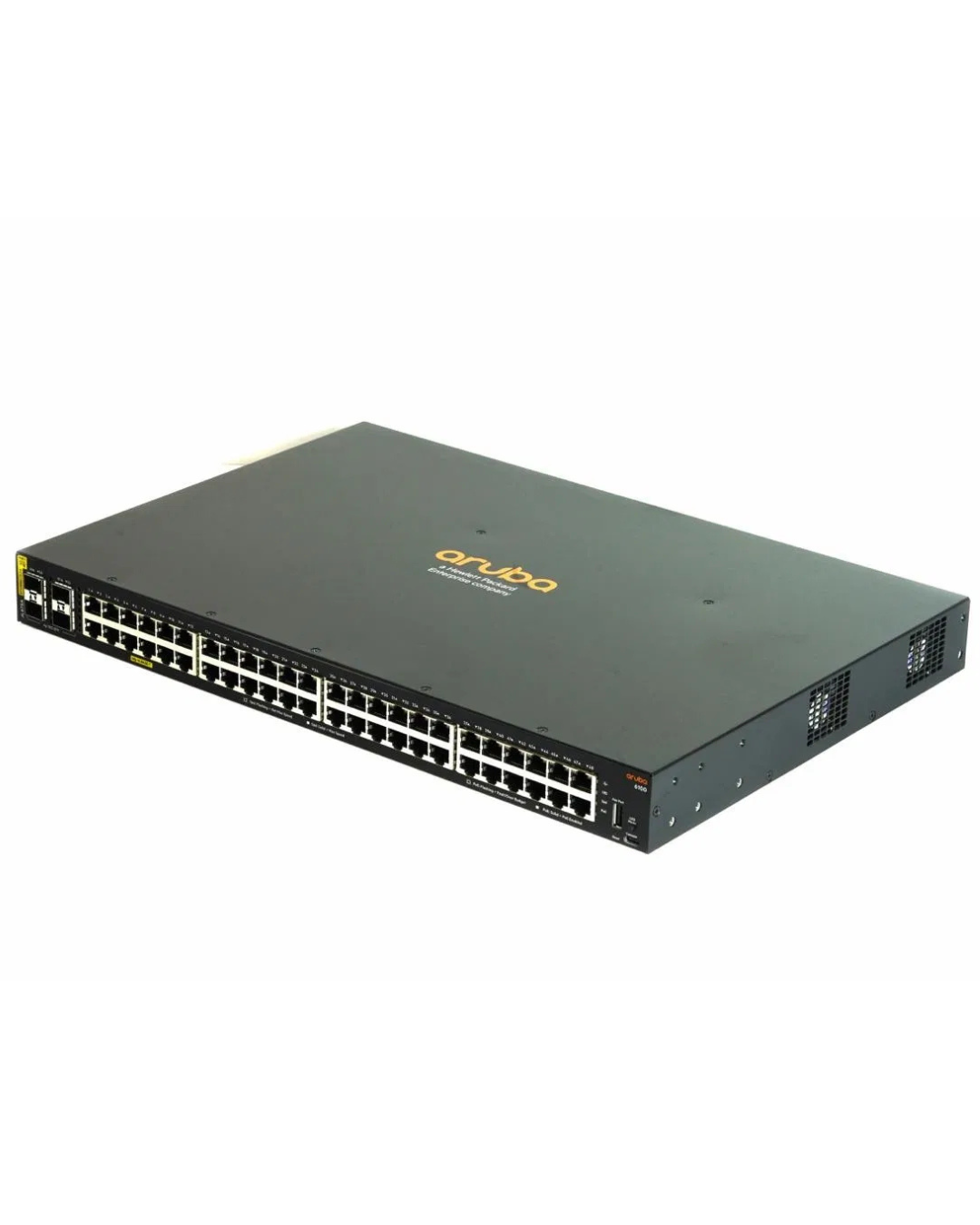

Aruba JL675A CX 6100 48G Class4 PoE 4SFP+ 370W Switch

The Aruba JL675A is a high‑performance 48‑port Gigabit PoE+ access switch in the Aruba CX 6100 Series, engineered for reliable, simple, and secure wired connectivity at the enterprise edge. With 48× 10/100/1000BASE‑T PoE+ ports, 4× integrated 1/10GbE SFP+ uplinks, and a 370W Class 4 PoE budget, this switch is ideal for powering access points, cameras, VoIP phones, and IoT devices in modern networks.

Built on the Aruba AOS‑CX operating system and the Aruba ASIC architecture, the JL675A delivers consistent operations, enhanced visibility, and simplified management through Aruba Central, Aruba NetEdit, a Web GUI, or standard CLI. It’s a dependable, future‑ready Layer 2 access switch designed for branch offices, SMBs, and enterprise edge deployments.

Key Features

• 48× 10/100/1000BASE‑T PoE+ access ports
• 4× 1/10GbE SFP+ uplink ports
• 370W Class 4 PoE (802.3at)
• AOS‑CX operating system for modern automation and visibility
• Aruba ASIC architecture for high reliability and performance
• Layer 2 switching with static routing
• Advanced security, ACLs, and QoS
• REST API support for automation workflows
• Fan‑cooled 1U rackmount design
• Energy‑efficient with low power draw

Technical Specifications

• Model: JL675A
• Series: Aruba CX 6100
• Access Ports: 48× 10/100/1000BASE‑T PoE+
• Uplinks: 4× SFP+ (1/10GbE)
• PoE Budget: 370W
• Switching Capacity: 176 Gbps
• Throughput: 130.95 Mpps
• Layer Support: Layer 2 + static routing
• Management: Aruba Central, NetEdit, Web GUI, CLI, REST APIs
• Operating System: Aruba AOS‑CX
• Form Factor: 1U rackmount
• Cooling: Fan‑cooled
• Power Consumption: ~45W (non‑PoE load)

Ideal Use Cases

• Enterprise branch office access
• SMB and mid‑market networks
• IoT and device‑dense environments
• Wireless AP aggregation
• VoIP and surveillance deployments
• Cloud‑managed edge switching

What’s Included

• Aruba JL675A CX 6100 48G Class4 PoE 4SFP+ 370W Switch
• Rackmount kit (brackets + screws)
• Power cord
• Console cable
