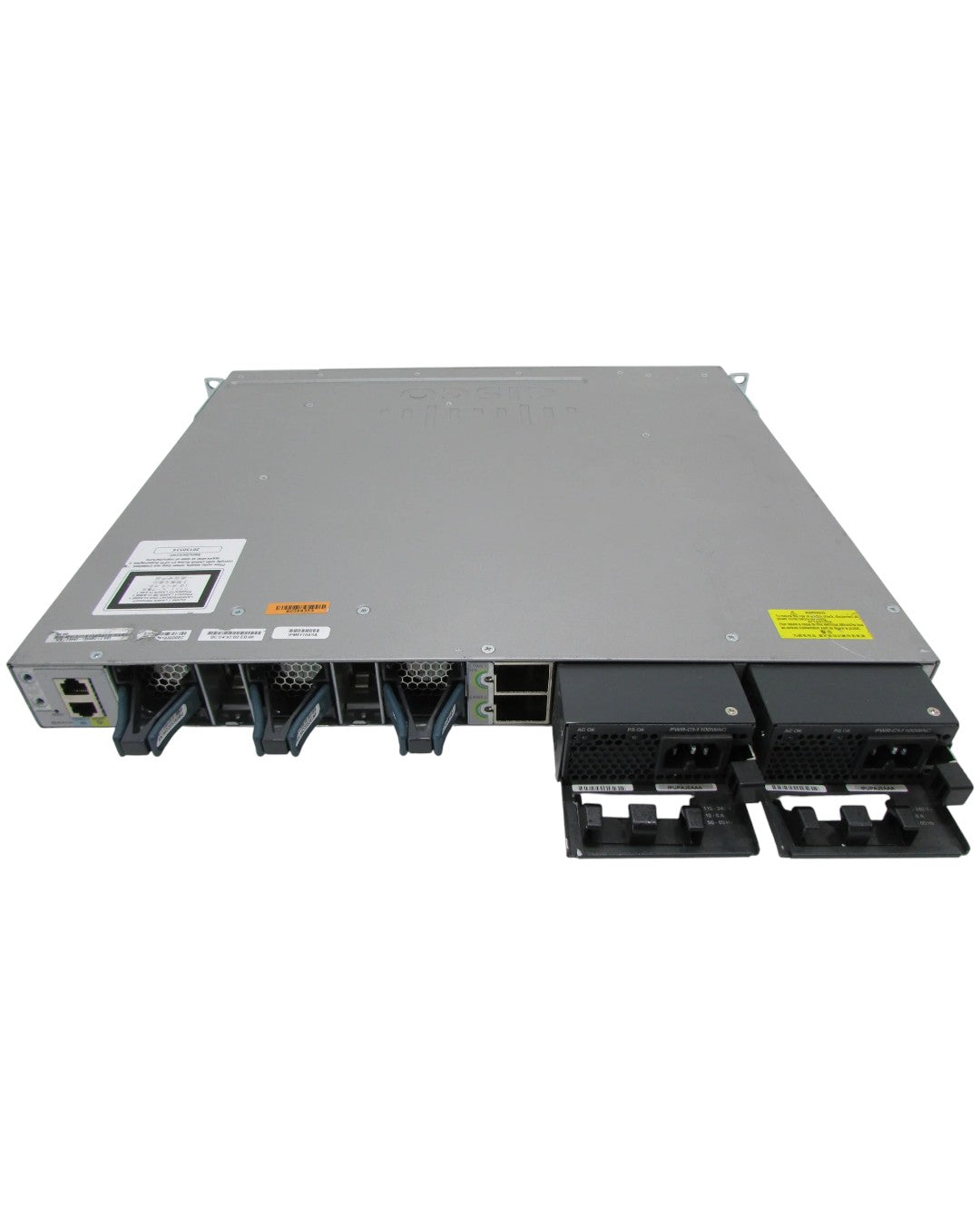

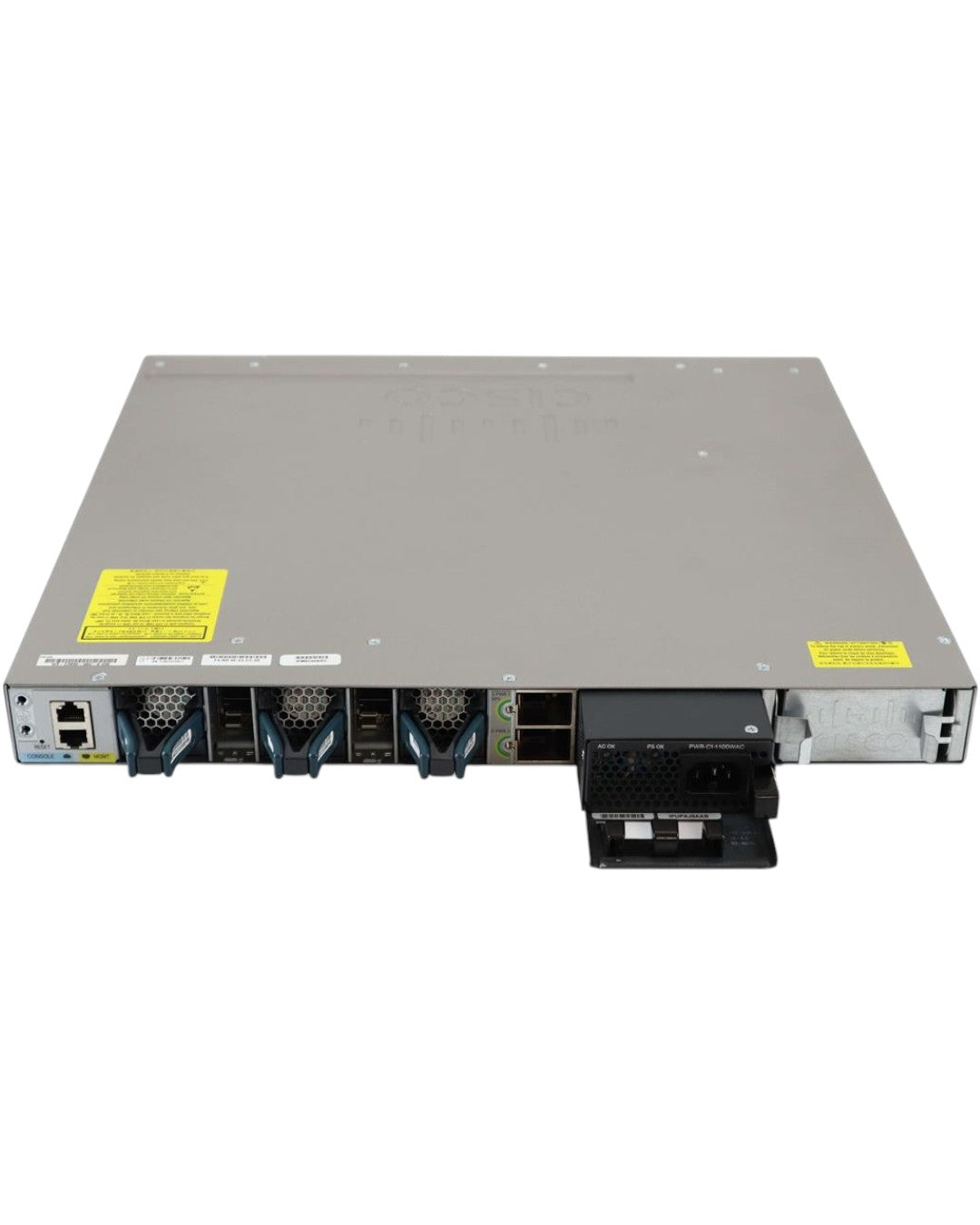

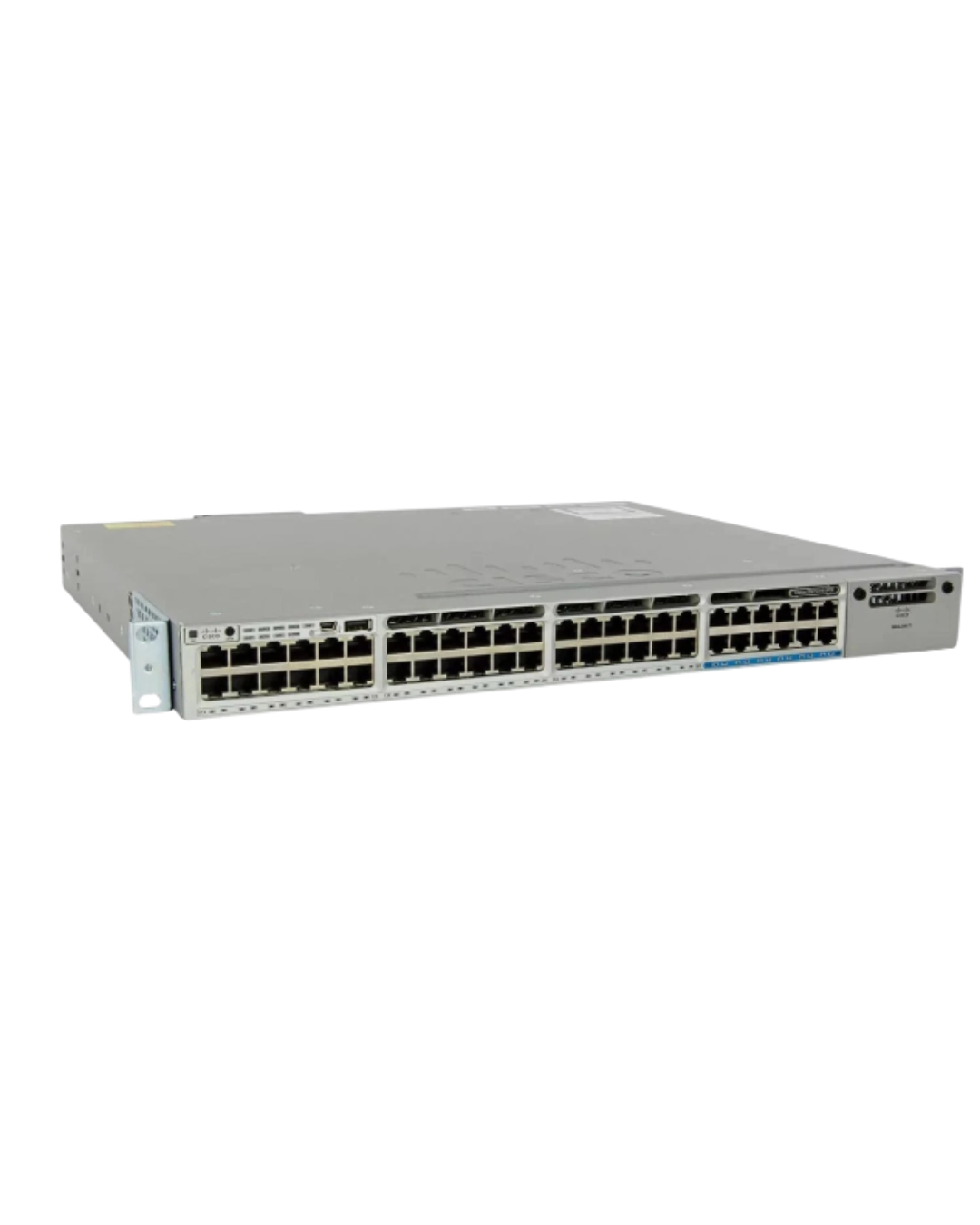

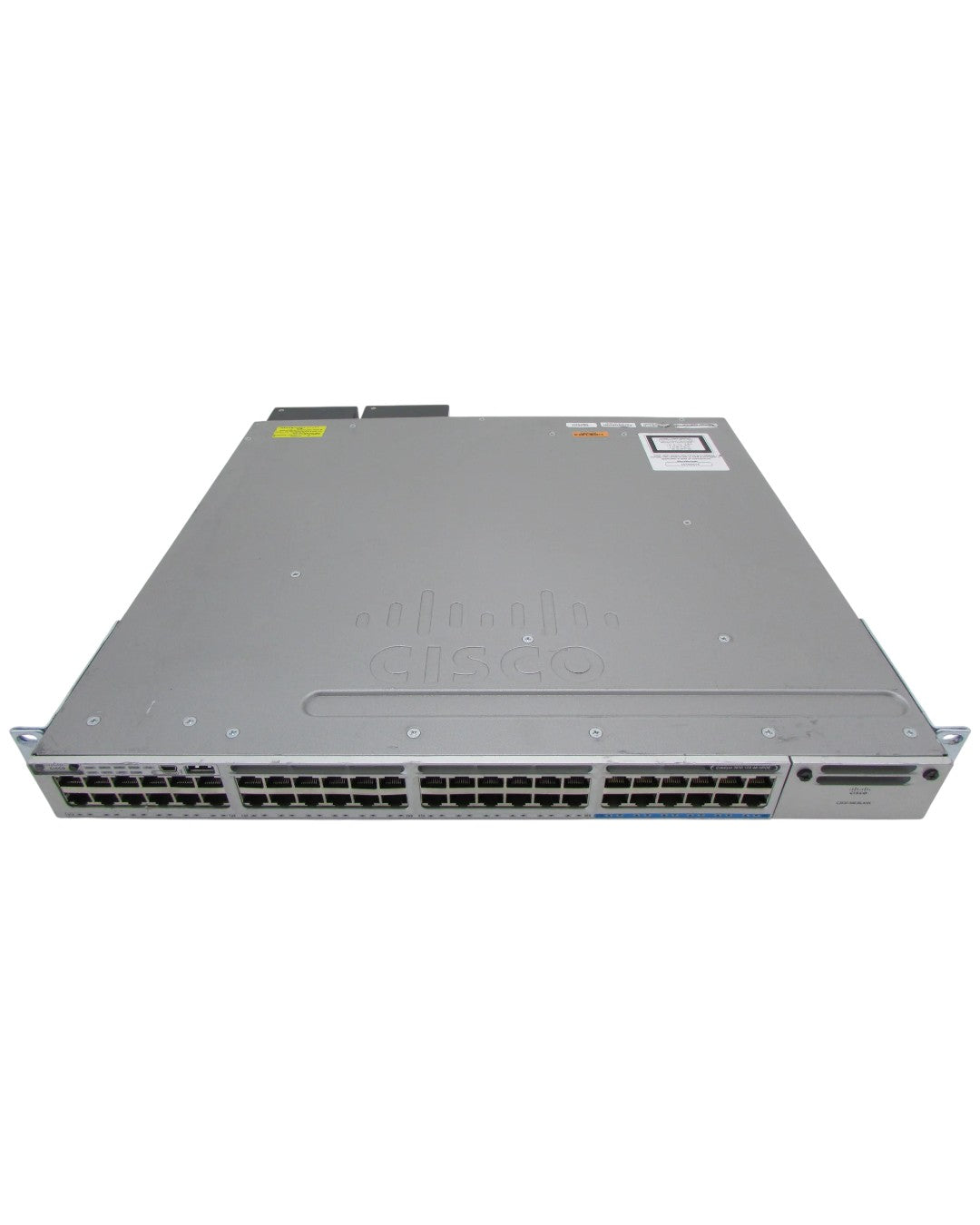

Cisco WS-C3850-12X48U 48-Port UPOE 1G Switch with 12-Port mGig, LAN Base Feature Set

The Cisco WS‑C3850‑12X48U is a powerhouse access‑layer switch built for modern high‑density networks. With 12 Multigigabit (mGig) ports, 48 UPOE ports, and four 10G SFP+ uplinks, it delivers exceptional performance for Wi‑Fi 6/6E access points, high‑draw PoE devices, and bandwidth‑intensive enterprise workloads. Powered by Cisco IOS‑XE, the 3850 series unifies wired and wireless access, enabling consistent policy, automation, and visibility across your entire campus network.

Designed for scalability, the WS‑C3850‑12X48U supports StackWise‑480, allowing up to 480 Gbps of stack bandwidth and simplified management across multiple switches. Whether you’re upgrading a campus core, expanding a branch, or modernizing a PoE‑heavy environment, this model provides the flexibility and performance required for long‑term growth.

This switch is available in three software feature tiers — LAN Base, IP Base, and IP Services — giving you the freedom to choose the routing and feature set that matches your deployment needs.

Key Features

• 12 Multigigabit (100M/1G/2.5G/5G/10G) ports
• 48 UPOE ports delivering up to 60W per port
• 4 × 10G SFP+ uplinks
• StackWise‑480 for high‑bandwidth stacking
• Cisco IOS‑XE with modular, programmable architecture
• Advanced QoS, security, and automation features
• Ideal for Wi‑Fi 6/6E access points, VoIP, cameras, and high‑draw PoE devices

Available Software Levels

The WS‑C3850‑12X48U can be purchased with one of three Cisco IOS‑XE feature sets:

• LAN Base — Layer 2 switching with basic static routing
• IP Base — Full Layer 3 routing, wireless convergence, and advanced access features
• IP Services — Enterprise‑grade routing including BGP, advanced IPv6, and full MPLS support

What’s Included

• Cisco WS‑C3850‑12X48U‑L switch
• Installed single or dual power supply
• Fans
• Rack‑mount kit
• Power cord
• Console cable

All components are tested, verified working, and ready for immediate installation.
