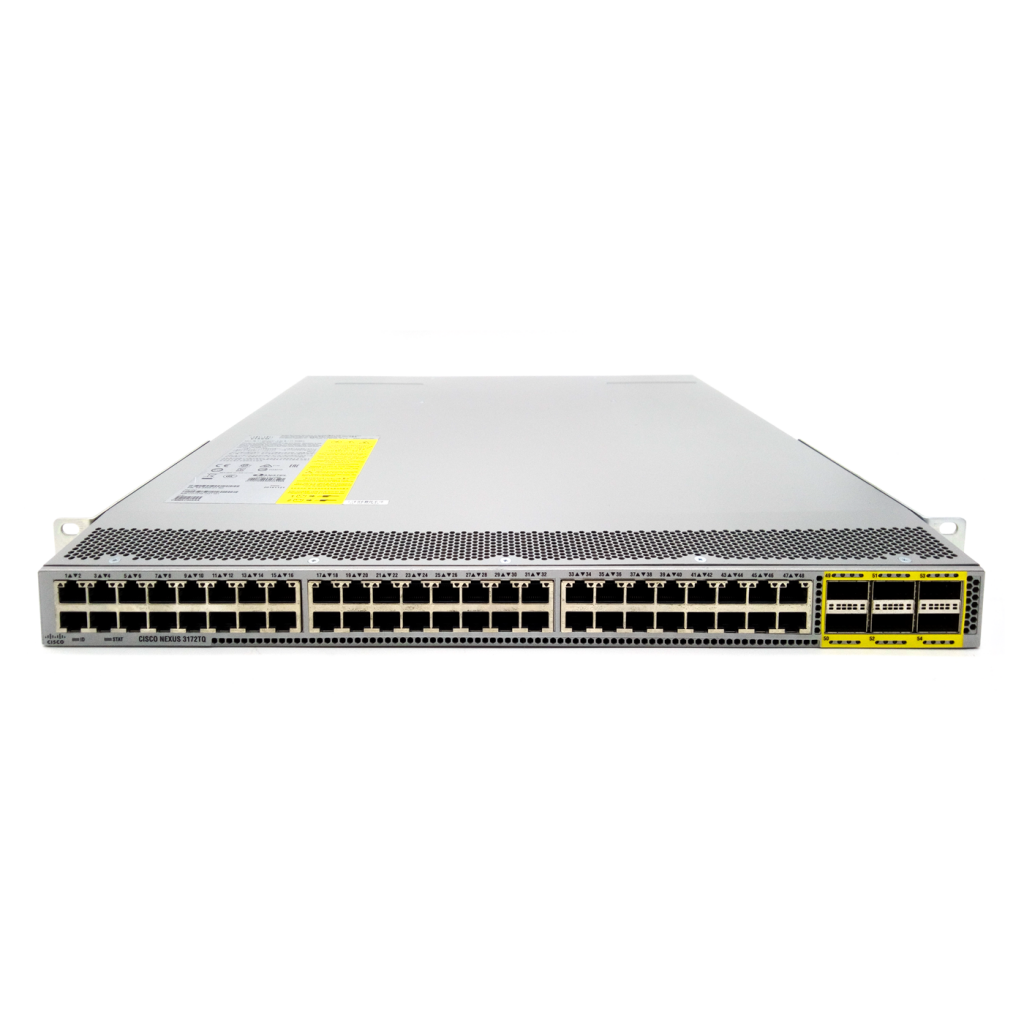

Cisco N3K-C3172TQ-10GT Refurbished 48-Port 10GbE ToR Switch
Request Bulk QuoteLifetime
Warranty
ISO 9001
Certified Testing
R2v3
Responsible Refurb
25+
Years
5K+
Customers
ISO
Certified
✓
Tested
Every WhaleyComm unit is professionally tested, reset to factory defaults, and certified by our in-house engineers — the same standard trusted by 5,000+ organisations across 25 years. Not a refurb marketplace. A certified lifecycle partner.
Enterprise-grade 10GbE top-of-rack density. Professionally tested. Backed by 25 years of enterprise trust.
This refurbished Cisco N3K-C3172TQ-10GT is a 1RU Nexus 3172TQ top-of-rack switch delivering 48 10GBASE-T RJ-45 ports and 6 QSFP+ uplink ports, each capable of operating at 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet. Every unit is professionally tested, reset to factory defaults, and ships inspection-verified through WhaleyComm's ISO 9001-certified process. Dual AC power supplies are included for redundant operation.Built on Cisco's Nexus 3100 platform, the N3K-C3172TQ-10GT delivers 1.4 Tbps of switching capacity and a forwarding rate of up to 1 billion packets per second with line-rate Layer 2 and Layer 3 throughput across all ports. Running Cisco NX-OS, the switch supports virtual port-channel (vPC), 64-way ECMP routing, jumbo frames up to 9216 bytes, up to 4096 VLANs, and a MAC address table of 288,000 entries. Both port-side exhaust and port-side intake airflow configurations are supported, making it straightforward to slot into hot-aisle or cold-aisle data center designs.
At $1,599, this unit represents substantial savings versus new list price while delivering the same line-rate performance trusted by enterprise data centers worldwide. WhaleyComm's 25+ years of experience and 5,000+ enterprise customers mean you receive not just hardware, but verified reliability and a Lifetime Warranty that new-channel vendors cannot match.
Technical Specifications
MPN
N3K-C3172TQ-10GT
Platform
Cisco Nexus 3100 Series
Form Factor
1RU rack-mountable
10GbE Ports
48 x 10GBASE-T RJ-45 (supports 100 Mbps, 1 Gbps, and 10 Gbps)
Uplink Ports
6 x QSFP+ (each supports 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet)
Management Ports
1 x management port, 1 x console port, 1 x USB flash-memory port
Switching Capacity
1.4 Tbps
Forwarding Rate
Up to 1 bpps (billion packets per second)
Layer Support
Layer 2 and Layer 3 line-rate switching
Max MTU
9216 bytes (jumbo frames)
MAC Address Table
288,000 entries
VLAN Support
4096
Spanning Tree Instances
RSTP 512 / MSTP 64
ACL Entries
4000 ingress / 1000 egress
Routing Table
16,000 prefixes and 16,000 host entries
Multicast Routes
8000
EtherChannels
64 (with vPC)
Ports per EtherChannel
32
System Memory
4 GB
Fan Modules
4 (3+1 redundant)
Power Supplies
2 (redundant AC)
Typical Operating Power
360 W
Airflow
Port-side exhaust and port-side intake (both supported)
Dimensions (H x W x D)
4.4 x 43.9 x 50.5 cm
Net Weight
10 kg
Operating System
Cisco NX-OS
Ideal Use Cases
Data Center Top-of-Rack (ToR) Deployment
The N3K-C3172TQ-10GT is purpose-built as a top-of-rack switch, delivering line-rate 10GbE to servers while aggregating traffic upstream over 40GbE QSFP+ uplinks — ideal for high-density compute rows.
Copper Cabling Infrastructure Reuse
The 48 10GBASE-T RJ-45 ports allow organizations to migrate servers from 1 Gbps to 10 Gbps without replacing existing copper cabling, protecting prior infrastructure investment.
High-Performance Layer 2 and Layer 3 Switching
With 1.4 Tbps switching capacity and full Layer 2/3 line-rate performance, this switch handles demanding east-west and north-south traffic patterns common in modern virtualized and containerized data centers.
vPC and Redundant Fabric Designs
Native vPC support eliminates Spanning Tree Protocol dependencies, enabling Layer 2 multipathing and fully utilized bisectional bandwidth for resilient dual-homed server and fabric designs.
Budget-Conscious Enterprise Refresh
Organizations refreshing aging access or ToR infrastructure gain proven Cisco Nexus performance at a fraction of new-hardware cost, with WhaleyComm's Lifetime Warranty eliminating residual risk.
NX-OS Standardized Environments
Running Cisco NX-OS, the switch integrates directly into existing Nexus management workflows, automation toolchains, and monitoring stacks without retraining network operations teams.
What's Included
Cisco N3K-C3172TQ-10GT Switch
2 x AC Power Supply Units
4 x Fan Modules
Rack Mount Kit
Console Cable
Lifetime Warranty — No Time Limits. No Questions.
Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it. We have stood behind our hardware for 25 years and 5,000+ customers — that is not a marketing line, it is our operating standard.
Compatibility Details
Review supported optics, cables, software, management protocols, and environment-specific compatibility guidance.
COMPATIBLE OPTICS & CABLES
✓
Each QSFP+ port is compatible with standard 40GbE QSFP+ transceivers and 4 x 10GbE breakout cables.
✓
The switch supports vPC interoperability with other Cisco Nexus platforms and operates with Cisco IOS Software and any networking OS conforming to applicable standards.
SOFTWARE COMPATIBILITY
✓
The Cisco N3K-C3172TQ-10GT runs Cisco NX-OS Software (Release 6.0(2)U2(1) and later) and is compatible with standard Cisco Nexus 3000 Series ecosystem components including NXA-PAC-500W AC power supplies and NXA-FAN-30CFM fan modules.
ADDITIONAL COMPATIBILITY
✓
The 48 RJ-45 ports accept standard Cat6a or Cat7 copper cabling for 10GBASE-T connectivity.
For compatibility verification specific to your environment, contact our engineering team: +1 214 607-4800 or sales@whaleycomm.com
Shipping & Returns
Clear fulfilment, tracking, return, warranty, and support information for enterprise hardware orders.
Shipping
Orders typically ship within 1-2 business days after payment confirmation. Tracking details are shared once the order has been dispatched.
Returns
Eligible products can be returned according to WhaleyComm's return policy. For DOA, warranty, or product-related issues, contact the support team for replacement or resolution.
Frequently Asked Questions
Product-specific answers about compatibility, testing, warranty, fulfilment, and purchase confidence.
Yes. The N3K-C3172TQ-10GT supports both port-side exhaust (front-to-back) and port-side intake (back-to-front) airflow configurations. This gives data center operators the flexibility to align the switch with hot-aisle or cold-aisle containment designs without additional hardware changes.
Yes. Each of the 6 QSFP+ ports supports either a single 40 Gigabit Ethernet connection or 4 x 10 Gigabit Ethernet connections via breakout cable. This gives network architects flexibility when designing uplink or spine interconnect topologies.
The N3K-C3172TQ-10GT ships with all 48 10GBASE-T ports active by default. Note that advanced Layer 3 features under certain NX-OS operating modes may require additional software licensing. Contact our engineering team at +1 214 607-4800 or sales@whaleycomm.com for licensing guidance specific to your environment.
Yes. Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it at no cost — no time limits, no questions asked.
Every unit goes through our ISO 9001-certified testing process: full power-on diagnostics, port-by-port functionality testing, firmware verification, factory reset, and final inspection. A Certificate of Testing ships with every unit.
