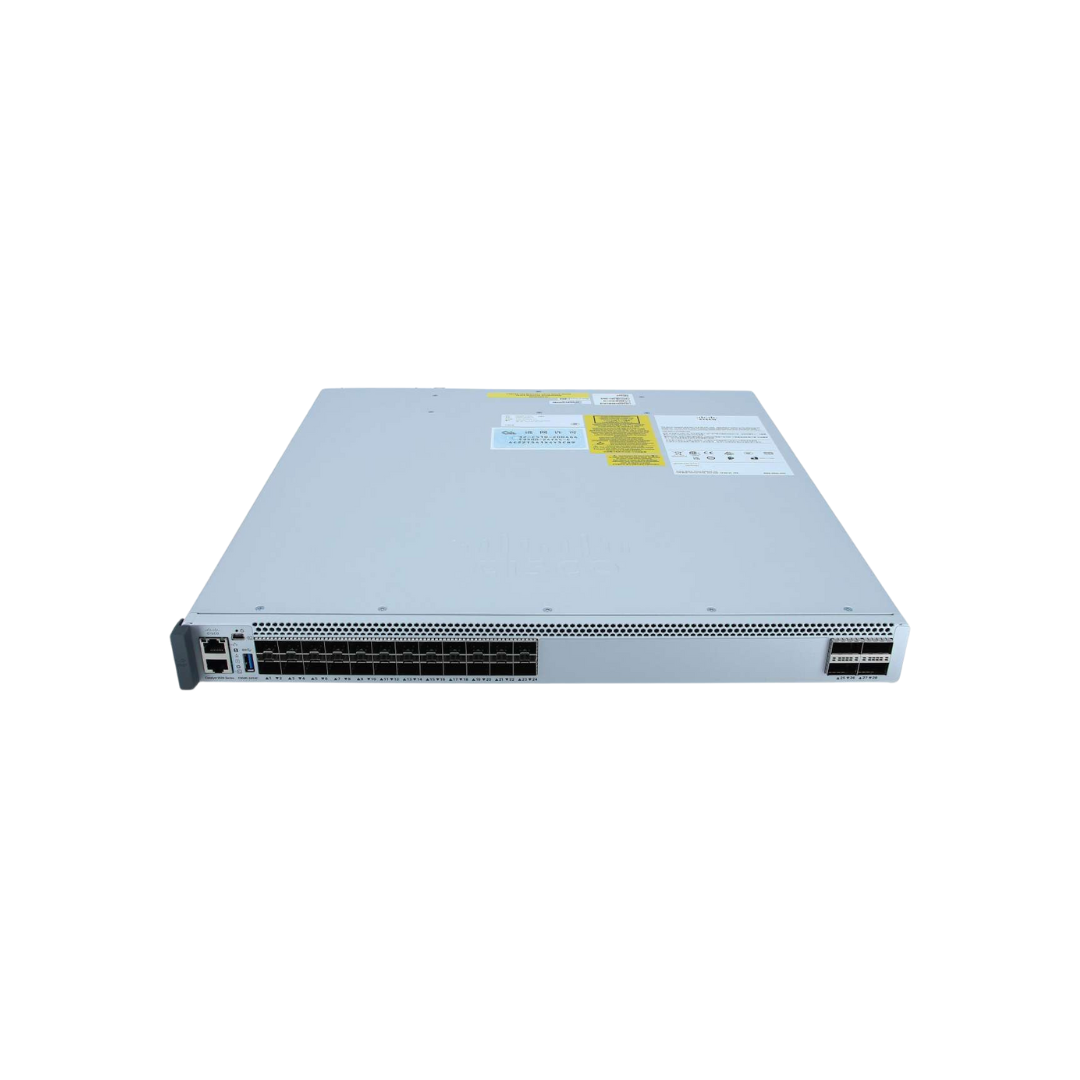

Cisco C9500-24Y4C Refurbished — 24-Port 25G Catalyst 9500 Switch
MPN: C9500-24Y4C
Request Bulk Quote
Lifetime
Warranty
ISO 9001
Certified Testing
R2v3
Responsible Refurb
25+
Years
5K+
Customers
ISO
Certified
✓
Tested
Every WhaleyComm unit is professionally tested, reset to factory defaults, and certified by our in-house engineers — the same standard trusted by 5,000+ organisations across 25 years. Not a refurb marketplace. A certified lifecycle partner.
Enterprise-grade 25G core switching, professionally tested and backed by 25+ years of enterprise trust.
This refurbished Cisco C9500-24Y4C is a Catalyst 9500 Series high-performance core and aggregation switch, professionally tested and reset to factory defaults before shipment. Delivering 24 ports of 1/10/25G SFP28 connectivity plus 4 fixed 40/100G QSFP28 uplink ports, the C9500-24Y4C is purpose-built for demanding enterprise campus core, aggregation, and data center edge deployments where high density and wire-speed performance are non-negotiable.Powered by a single UADP 3.0 ASIC, the C9500-24Y4C delivers up to 2.0 Tbps of switching capacity and up to 1 Bpps of forwarding performance in a compact 1RU form factor. The platform runs Cisco IOS XE and supports an x86-based 4-core 2.4-GHz CPU, 16 GB DDR4 DRAM, and 16 GB internal flash — enabling on-box programmability, Python scripting, streaming telemetry, and container-based application hosting. Advanced capabilities including StackWise Virtual, SD-Access, MACsec 256-bit encryption, MPLS, EVPN/VXLAN, BGP, OSPF, and Segment Routing are supported depending on the license tier selected.
Choosing a refurbished C9500-24Y4C from WhaleyComm delivers the same enterprise-grade performance as new hardware at a significant cost advantage — ideal for organizations looking to maximize their infrastructure budget without compromising on reliability. Every unit is sourced, tested, and certified under our ISO 9001, R2v3, and e-Stewards programs, and ships with WhaleyComm's Lifetime Warranty.
Technical Specifications
MPN
C9500-24Y4C
Product Series
Cisco Catalyst 9500
Condition
Refurbished
Form Factor
1RU Rack-mountable
ASIC
Cisco UADP 3.0
Data Ports
24 x 1/10/25G SFP28
Uplink Ports
4 x 40/100G QSFP28
Total Ports
28
Switching Capacity
Up to 2.0 Tbps
Forwarding Rate
Up to 1 Bpps
CPU
4-core x86 Intel 2.4 GHz
DRAM
16 GB DDR4
Internal Flash
16 GB
MAC Address Table
Up to 82,000
IPv4 Routes (indirect + direct)
Up to 212,000
IPv4 Host/ARP Entries
Up to 90,000
IPv6 Routes (indirect + direct)
Up to 212,000
IPv6 Host Entries
Up to 90,000
QoS ACL Scale
Up to 16,000
Security ACL Scale
Up to 27,000
FNF Entries
Up to 98,000
Power Supply
Dual 1+1 redundant slots (AC or DC); 1 PSU included by default
Optional Storage
Up to 960 GB SATA SSD (pluggable)
Airflow
Port-side intake (front-to-rear)
Layer Support
Layer 3
Management
Cisco IOS XE (Release 16.5.1a or later)
Stacking
Cisco StackWise Virtual
Ideal Use Cases
Enterprise Campus Core
The C9500-24Y4C is purpose-built as a fixed core switch for enterprise campus networks, delivering 2.0 Tbps of non-blocking switching capacity and 25G high-density downlinks to support modern aggregation and distribution architectures.
Data Center Edge and Aggregation
With 4x 100G QSFP28 uplinks and EVPN/VXLAN support, this switch is well suited for data center edge and leaf-spine aggregation roles requiring high throughput and advanced routing features.
SD-Access Fabric Deployment
The C9500-24Y4C is a validated node for Cisco SD-Access, enabling policy-based automation, secure segmentation, and IoT integration across the campus fabric from a single management plane.
High-Density 25G Server Connectivity
Organizations migrating server access from 10G to 25G can consolidate connectivity at the top-of-rack or end-of-row layer, taking advantage of SFP28 backward compatibility with 10G and 1G optics.
MPLS and Segment Routing Backbone
With support for MPLS L2/L3 VPNs, BGP, OSPF, and Segment Routing, the C9500-24Y4C can serve as a high-performance backbone node in enterprises requiring advanced WAN and VPN interconnect capabilities.
Budget-Optimized Infrastructure Refresh
Enterprises refreshing aging core infrastructure can deploy a professionally refurbished C9500-24Y4C to achieve the performance of current-generation Cisco hardware at a substantially reduced capital cost.
What's Included
Cisco C9500-24Y4C Refurbished Switch (1 unit)
1 x AC Power Supply (pre-installed)
Rack-mount kit
Certificate of Testing
Lifetime Warranty — No Time Limits. No Questions.
Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it. We have stood behind our hardware for 25 years and 5,000+ customers — that is not a marketing line, it is our operating standard.
Compatibility Details
Review supported optics, cables, software, management protocols, and environment-specific compatibility guidance.
COMPATIBLE PLATFORMS
✓
Optional pluggable SATA SSD modules are supported in 240 GB, 480 GB, and 960 GB capacities.
COMPATIBLE OPTICS & CABLES
✓
The Cisco C9500-24Y4C is compatible with Cisco SFP28 (25G/10G/1G) and QSFP28 (100G/40G) transceivers.
✓
For a full list of validated optics and cables, refer to the Cisco Transceiver Module Group (TMG) Compatibility Matrix at tmgmatrix.cisco.com.
SOFTWARE COMPATIBILITY
✓
The switch runs Cisco IOS XE Software Release 16.5.1a or later.
ADDITIONAL COMPATIBILITY
✓
Power supplies and fan modules are field-replaceable and hot-swappable.
For compatibility verification specific to your environment, contact our engineering team: +1 214 607-4800 or sales@whaleycomm.com
Shipping & Returns
Clear fulfilment, tracking, return, warranty, and support information for enterprise hardware orders.
Shipping
Orders typically ship within 1-2 business days after payment confirmation. Tracking details are shared once the order has been dispatched.
Returns
Eligible products can be returned according to WhaleyComm's return policy. For DOA, warranty, or product-related issues, contact the support team for replacement or resolution.
Frequently Asked Questions
Product-specific answers about compatibility, testing, warranty, fulfilment, and purchase confidence.
The -A suffix denotes the Network Advantage license tier, while the -E suffix denotes the Network Essentials license tier. The underlying hardware is identical across both SKUs. The license tier determines which software features are enabled; advanced capabilities such as EVPN/VXLAN, Segment Routing, and full BGP typically require the Network Advantage license. WhaleyComm sells the base hardware unit — contact our team to confirm the license tier you require.
Yes. The Cisco C9500-24Y4C supports Cisco StackWise Virtual, which allows two physical switches to operate as a single logical switch for redundancy and simplified management. This capability is available on the Network Advantage license tier.
Yes. Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it at no cost — no time limits, no questions asked.
Every unit goes through our ISO 9001-certified testing process: full power-on diagnostics, port-by-port functionality testing, firmware verification, factory reset, and final inspection. A Certificate of Testing ships with every unit.
