REFURBISHED
Cisco
Cisco C9300L-24P-4X-A Refurbished 24-Port PoE+ Switch 4x10G
MPN: C9300L-24P-4X-A
Request Bulk Quote
Lifetime
Warranty
ISO 9001
Certified Testing
R2v3
Responsible Refurb
25+
Years
5K+
Customers
ISO
Certified
✓
Tested
Every WhaleyComm unit is professionally tested, reset to factory defaults, and certified by our in-house engineers — the same standard trusted by 5,000+ organisations across 25 years. Not a refurb marketplace. A certified lifecycle partner.
Professionally tested to factory specification. Backed by 25+ years of enterprise trust.

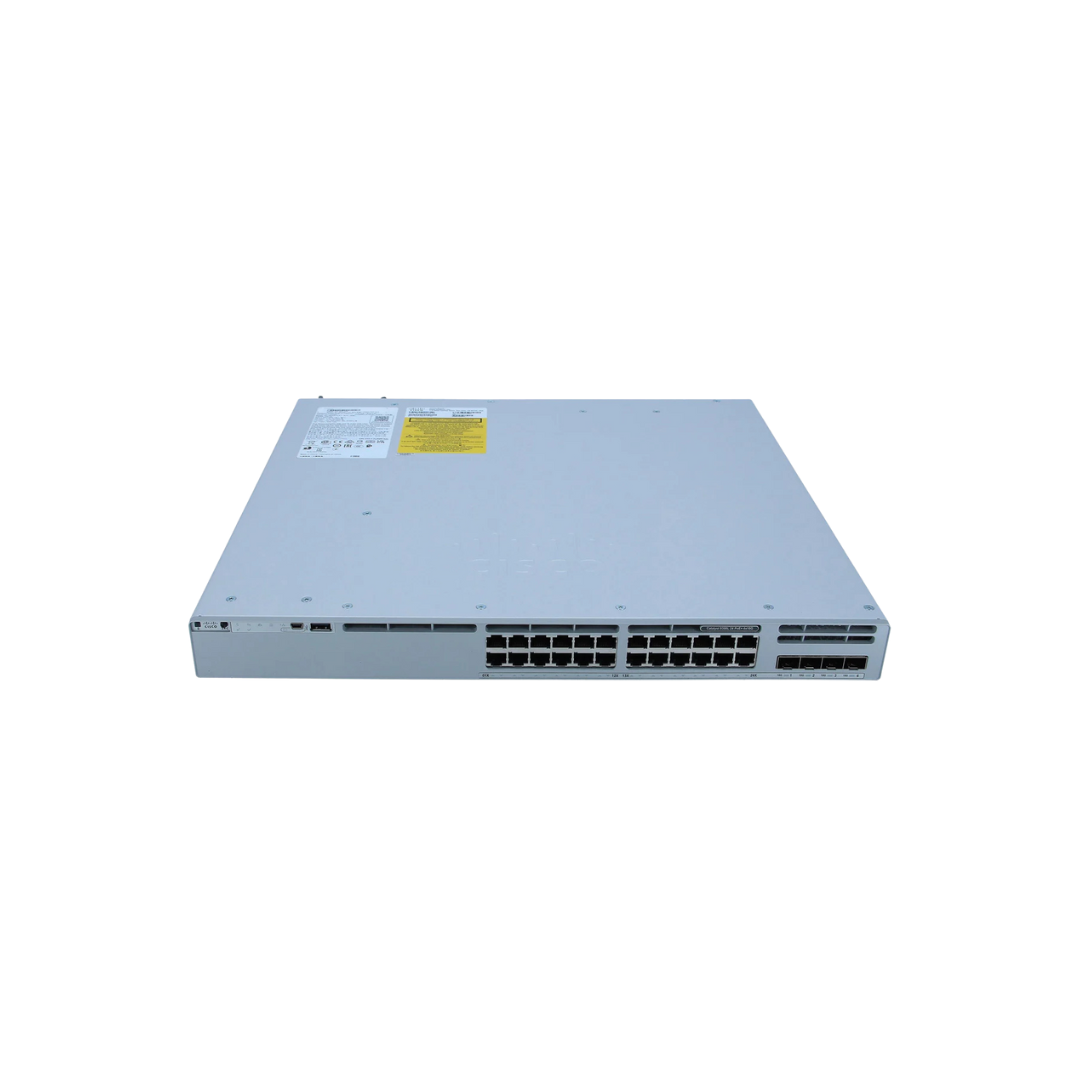

This refurbished Cisco C9300L-24P-4X-A is a Catalyst 9300L Series access switch offering 24 Gigabit Ethernet PoE+ ports and 4 fixed 10G SFP+ uplinks with a Network Advantage software license. Every unit is professionally tested, reset to factory defaults, and ships through WhaleyComm's ISO 9001-certified inspection process. It arrives ready to deploy in enterprise campus, branch, and edge environments.Built on Cisco's UADP 2.0 ASIC, the C9300L-24P-4X-A delivers 128 Gbps of switching capacity and a 95.23 Mpps forwarding rate at wire-speed nonblocking performance for both IPv4 and IPv6. The default 715W AC power supply provides up to 505W of PoE budget across all 24 ports, with support for a second power supply to reach 720W. The switch supports Cisco StackWise-320 stacking with up to 8 members and 320 Gbps of stacking bandwidth when optional stack kit hardware is added. The Network Advantage license unlocks the full enterprise routing suite including BGP, OSPF, EIGRP, MPLS, and full SD-Access Fabric Edge capability with VXLAN support.
Purchasing refurbished through WhaleyComm delivers the same Cisco Catalyst 9300L performance at a fraction of new MSRP, with no compromise on reliability. WhaleyComm has served 5,000+ enterprise customers over 25+ years and backs every unit with a Lifetime Warranty. R2v3, e-Stewards, and ISO 9001 certifications mean your procurement also satisfies sustainability and compliance requirements.
Technical Specifications
Brand
Cisco
Model
C9300L-24P-4X-A
Series
Catalyst 9300L
Product Type
Managed Layer 3 Access Switch
Access Ports
24 x 1G RJ-45 PoE+ (802.3at, 30W per port)
Uplink Ports
4 x 10G/1G SFP+
PoE Standard
IEEE 802.3at PoE+
PoE Budget (Default PSU)
505W
PoE Budget (with 2nd PSU)
720W
Default Power Supply
PWR-C1-715WAC-P (715W AC)
Switching Capacity
128 Gbps
Forwarding Rate
95.23 Mpps
MAC Address Table
32,000 entries
DRAM
8 GB
Flash
16 GB
ASIC
Cisco UADP 2.0
Software
Cisco IOS XE (16.11.1b or later)
License Tier
Network Advantage
Stacking Technology
StackWise-320 (optional kit required)
Max Stack Members
8
Stacking Bandwidth
320 Gbps
Form Factor
1U Rack-Mountable
Dimensions (H x W x D)
1.73 x 17.5 x 19.2 in. (4.4 x 44.5 x 48.8 cm)
Weight
14.99 lb (6.81 kg)
MTBF
340,710 hours
Ideal Use Cases
Enterprise Campus Access Layer
Deploy the C9300L-24P-4X-A as a high-density PoE+ access switch in campus wiring closets, powering Wi-Fi 6 access points, IP phones, and security cameras from a single 1U chassis with 10G uplinks to the distribution layer.
Branch Office Aggregation
The fixed 4x10G SFP+ uplinks and full Network Advantage routing suite make this switch ideal for branch offices requiring BGP, OSPF, or MPLS directly at the edge, reducing dependence on upstream routers.
IoT and Smart Building Deployments
With Perpetual PoE and Fast PoE support, the switch continues delivering power to IoT endpoints such as PoE-powered lighting, cameras, and sensors during reloads and power restoration events, minimizing operational disruption.
SD-Access Fabric Edge Node
The C9300L-24P-4X-A with Network Advantage license can serve as a Fabric Edge node in Cisco's SD-Access architecture, supporting VXLAN-based micro-segmentation and automated policy enforcement across the campus.
Stackable High-Availability Access
Using the optional StackWise-320 kit, up to 8 C9300L switches can be combined into a single logical stack with 320 Gbps of stacking bandwidth, delivering a unified management plane and simplified operations for growing access layer deployments.
What's Included
1 x Cisco C9300L-24P-4X-A Refurbished Switch
1 x PWR-C1-715WAC-P 715W AC Power Supply (installed)
AC Power Cord
Rack Mount Kit
Certificate of Testing
Lifetime Warranty — No Time Limits. No Questions.
Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it. We have stood behind our hardware for 25 years and 5,000+ customers — that is not a marketing line, it is our operating standard.
Compatibility Details
Review supported optics, cables, software, management protocols, and environment-specific compatibility guidance.
COMPATIBLE PLATFORMS
✓
The Cisco C9300L-24P-4X-A is compatible with other Cisco Catalyst 9300L Series switches for StackWise-320 stacking.
✓
It cannot be stacked with modular uplink C9300 or C9300X models, or with Cisco Catalyst 3850 or 3650 Series switches.
COMPATIBLE OPTICS & CABLES
✓
The 4x SFP+ uplink ports support Cisco-compatible 10G and 1G SFP+ transceivers.
SOFTWARE COMPATIBILITY
✓
The switch runs Cisco IOS XE Release 16.11.1b or later.
ADDITIONAL COMPATIBILITY
✓
Optional second power supply options include PWR-C1-350WAC-P, PWR-C1-715WAC-P, and PWR-C1-1100WAC-P.
For compatibility verification specific to your environment, contact our engineering team: +1 214 607-4800 or sales@whaleycomm.com
Shipping & Returns
Clear fulfilment, tracking, return, warranty, and support information for enterprise hardware orders.
Shipping
Orders typically ship within 1-2 business days after payment confirmation. Tracking details are shared once the order has been dispatched.
Returns
Eligible products can be returned according to WhaleyComm's return policy. For DOA, warranty, or product-related issues, contact the support team for replacement or resolution.
Frequently Asked Questions
Product-specific answers about compatibility, testing, warranty, fulfilment, and purchase confidence.
No. Stacking ports are not included by default on the C9300L platform. You must purchase the optional StackWise-320 stack kit separately to enable stacking. Once installed, you can stack up to 8 C9300L switches for up to 320 Gbps of stacking bandwidth.
The Network Advantage license on the C9300L-24P-4X-A unlocks advanced Layer 3 routing protocols including BGP, EIGRP, MPLS, and full SD-Access Fabric Edge capability with VXLAN. The Network Essentials model is limited to a subset of routing features such as OSPF Routed Access and basic static routing.
With the default 715W AC power supply, the available PoE budget is 505W, which may not cover all 24 ports at full 30W simultaneously. Adding a second power supply raises the PoE budget to 720W, which is sufficient to deliver 30W to all 24 ports.
Yes. Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it at no cost — no time limits, no questions asked.
Every unit goes through our ISO 9001-certified testing process: full power-on diagnostics, port-by-port functionality testing, firmware verification, factory reset, and final inspection. A Certificate of Testing ships with every unit.
