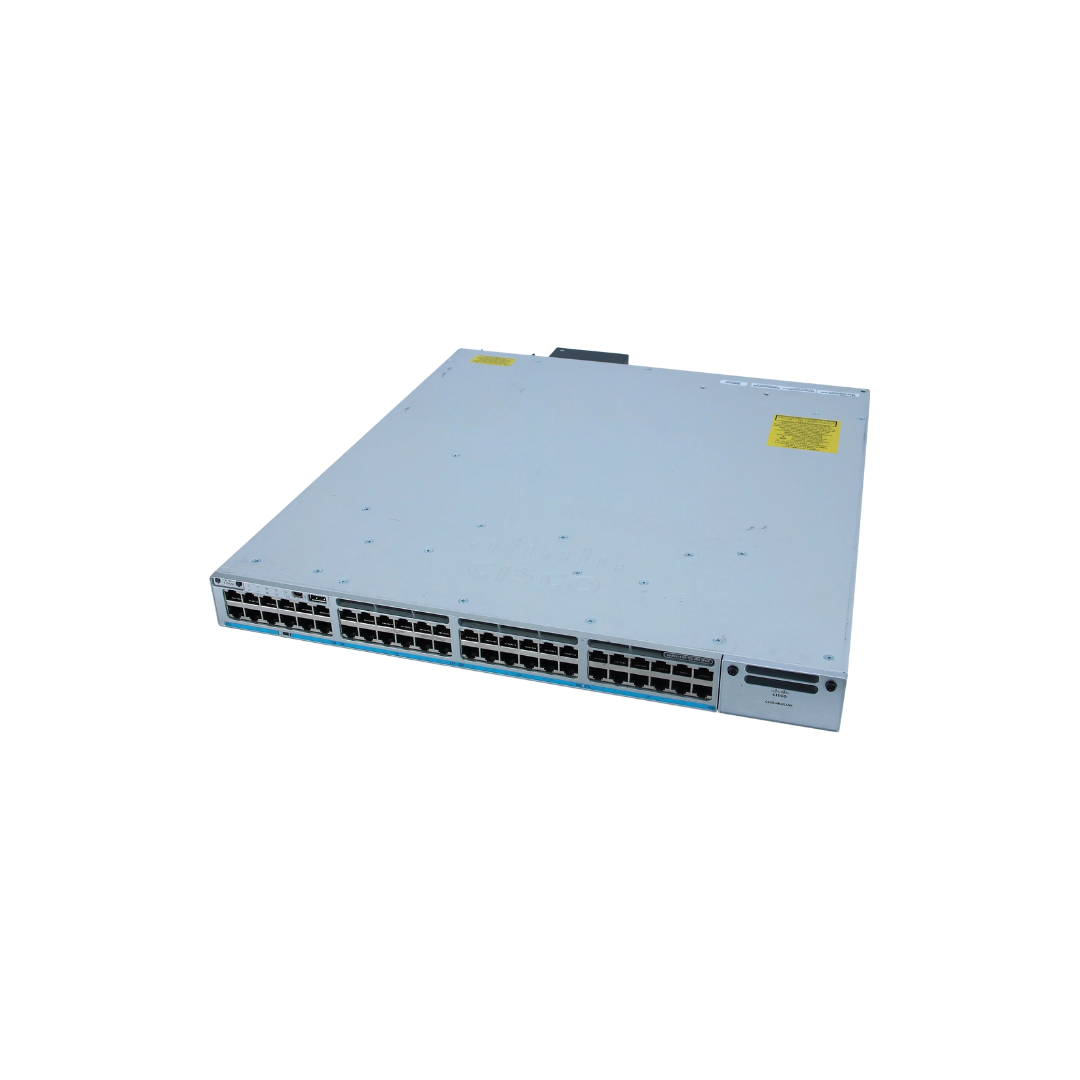

Cisco C9300-48UXM-A Refurbished — 48-Port 2.5G UPOE Stackable Switch
MPN: C9300-48UXM-A
Request Bulk Quote
Lifetime
Warranty
ISO 9001
Certified Testing
R2v3
Responsible Refurb
25+
Years
5K+
Customers
ISO
Certified
✓
Tested
Every WhaleyComm unit is professionally tested, reset to factory defaults, and certified by our in-house engineers — the same standard trusted by 5,000+ organisations across 25 years. Not a refurb marketplace. A certified lifecycle partner.
Professionally tested. Factory reset. Backed by 25+ years of enterprise hardware trust.
This refurbished Cisco C9300-48UXM-A is a Catalyst 9300 Series 48-port multigigabit stackable access switch running the Network Advantage feature set. Professionally tested and reset to factory defaults, this unit delivers the full production capability of a new unit at a fraction of the cost. The C9300-48UXM-A ships with 36 ports operating at 100 Mbps, 1G, or 2.5G and 12 ports operating at 100 Mbps, 1G, 2.5G, 5G, or 10G — all 48 ports supporting Cisco Universal Power over Ethernet (UPOE) with a 490 W PoE budget. A single modular uplink slot accepts optional network modules for 1G, 10G, 25G, or 40G uplink connectivity.Built on Cisco's UADP 2.0 ASIC, the C9300-48UXM-A delivers 580 Gbps of switching capacity and 431.54 Mpps forwarding performance. Cisco StackWise-480 technology enables stacking of up to eight units with 480 Gbps of dedicated stacking bandwidth, forming a single resilient logical switch. The platform runs Cisco IOS XE with an x86 CPU architecture, supporting full Layer 3 routing — including OSPF, EIGRP, BGP, IS-IS, and policy-based routing — as well as SD-Access, MACsec-128 hardware encryption, Flexible NetFlow, VXLAN, TrustSec, 802.1x, and model-driven programmability via NETCONF and RESTCONF.
At $1,949, this refurbished C9300-48UXM-A represents significant savings versus new list pricing while delivering identical enterprise functionality. WhaleyComm is ISO 9001, R2v3, and e-Stewards certified with 25+ years of experience and 5,000+ enterprise customers — every unit ships with our Lifetime Warranty and a Certificate of Testing.
Technical Specifications
Model
C9300-48UXM-A
Series
Cisco Catalyst 9300
Switch Type
Stackable Layer 3 Managed Switch
Form Factor
1U Rack-Mountable
Total Ports
48
Downlink Ports
36 x 100M/1G/2.5G UPOE RJ45 + 12 x 100M/1G/2.5G/5G/10G UPOE RJ45
Power over Ethernet
Cisco UPOE (up to 60W per port)
PoE Budget
490 W
Max PoE Power (with second PSU)
1,590 W
Uplink Module Slot
1 x modular slot (optional network module)
Switching Capacity
580 Gbps
Stacking Bandwidth
480 Gbps
Forwarding Rate
431.54 Mpps
Stacking Technology
Cisco StackWise-480
Max Stack Size
8 units
MAC Address Table
32,000 entries
IPv4 Routing Table Entries
32,000
IPv6 Routing Table Entries
16,000
VLAN IDs
4,000
Switched Virtual Interfaces (SVIs)
2,000
Flexible NetFlow Entries
64,000
Packet Buffer
16 MB
Dimensions (H x W x D)
1.73 x 17.5 x 18.5 in (4.4 x 44.5 x 47.0 cm)
Weight
20.5 lb (9.34 kg)
Default Power Supply
1 x 1100W AC (PWR-C1-1100WAC)
Power Supply Slots
2 (supports redundant second PSU)
Fans
3 (hot-swappable)
Operating System
Cisco IOS XE
Software License Level
Network Advantage
Routing Protocols
OSPF, OSPFv3, IS-IS, RIP-1, RIP-2, RIPng, BGP, EIGRP, HSRP, VRRP, IGMP, PIM-SM, PIM-SSM, MSDP, policy-based routing (PBR)
Encryption
MACsec-128 (AES-128)
Management Protocols
SNMP v1/v2c/v3, CLI, NETCONF, RESTCONF, RMON 1/2
Ideal Use Cases
High-Density Wi-Fi 6 and Wi-Fi 6E Access Layer
All 48 UPOE ports deliver up to 60W and multigigabit speeds, making the C9300-48UXM-A ideal for powering and connecting Wi-Fi 6 and Wi-Fi 6E access points at 2.5G or 10G without infrastructure upgrades.
Enterprise Campus Access Switch
StackWise-480 stacking with up to eight units and 480 Gbps of dedicated stack bandwidth enables high-density campus deployments to operate as a single logical switch with sub-50ms failover.
SD-Access Fabric Edge Node
The C9300-48UXM-A serves as a validated SD-Access fabric edge node, supporting TrustSec group-based policies, VXLAN segmentation, and Cisco DNA Center integration for intent-based network automation.
High-Power IoT and IP Camera Aggregation
With 60W UPOE available on all 48 ports and a 490W PoE budget expandable to 1,590W with a second power supply, this switch is well suited for aggregating power-hungry IoT devices, PTZ cameras, and smart building endpoints.
Multigigabit Workstation and Collaboration Endpoint Access
The 12 native 10G/mGig ports and 36 2.5G ports provide workstations, video-conferencing endpoints, and compute nodes with bandwidth well beyond standard gigabit, eliminating uplink congestion at the access layer.
What's Included
1 x Cisco C9300-48UXM-A Switch (refurbished, professionally tested, reset to factory defaults)
1 x PWR-C1-1100WAC 1100W AC Power Supply (default)
Rack mount kit
Power cord
Console cable
Certificate of Testing
Lifetime Warranty — No Time Limits. No Questions.
Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it. We have stood behind our hardware for 25 years and 5,000+ customers — that is not a marketing line, it is our operating standard.
Compatibility Details
Review supported optics, cables, software, management protocols, and environment-specific compatibility guidance.
COMPATIBLE PLATFORMS
✓
Catalyst 3850 network modules are also supported in the uplink slot.
COMPATIBLE OPTICS & CABLES
✓
The C9300-48UXM-A supports the following optional uplink network modules: C9300-NM-4G (4x1G SFP), C9300-NM-8X (8x10G SFP+), C9300-NM-2Q (2x40G QSFP+), C9300-NM-2T (2x25G SFP28), C9300-NM-4M (4xmGig).
✓
Stacking cables STACK-T1-50CM, STACK-T1-1M, and STACK-T1-3M are compatible.
SOFTWARE COMPATIBILITY
✓
The switch runs Cisco IOS XE and is compatible with Cisco DNA Center for on-premises management and supports NETCONF/RESTCONF for third-party automation platforms.
ADDITIONAL COMPATIBILITY
✓
Compatible power supplies include PWR-C1-1100WAC (default), PWR-C1-1100WAC-P (Platinum-rated), and PWR-C1-1900WAC-P.
For compatibility verification specific to your environment, contact our engineering team: +1 214 607-4800 or sales@whaleycomm.com
Shipping & Returns
Clear fulfilment, tracking, return, warranty, and support information for enterprise hardware orders.
Shipping
Orders typically ship within 1-2 business days after payment confirmation. Tracking details are shared once the order has been dispatched.
Returns
Eligible products can be returned according to WhaleyComm's return policy. For DOA, warranty, or product-related issues, contact the support team for replacement or resolution.
Frequently Asked Questions
Product-specific answers about compatibility, testing, warranty, fulfilment, and purchase confidence.
The suffix indicates the software license tier included with the hardware. The -A model includes the Network Advantage license, which enables advanced features such as BGP, OSPF, VXLAN, TrustSec, MACsec, and SD-Access fabric roles. The -E model includes the Network Essentials license with a reduced Layer 3 and security feature set. Both models use identical hardware.
No. Per Cisco's default configuration, the C9300-48UXM-A does not include a network module in the uplink slot. The modular slot supports optional Cisco C9300 network modules including the C9300-NM-4G (4x1G), C9300-NM-8X (8x10G), C9300-NM-2Q (2x40G), C9300-NM-2T (2x25G), and C9300-NM-4M (4xmGig). Contact our team to add a compatible module to your order.
Yes. The C9300-48UXM-A supports Cisco StackWise-480 and can be stacked with any combination of standard Catalyst 9300 modular uplink models (C9300 SKUs) in a stack of up to eight units. Mixed stacking with Catalyst 9300X models is also supported at StackWise-480 speeds. Fixed uplink C9300L models cannot be mixed into the same stack.
Yes. Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it at no cost — no time limits, no questions asked.
Every unit goes through our ISO 9001-certified testing process: full power-on diagnostics, port-by-port functionality testing, firmware verification, factory reset, and final inspection. A Certificate of Testing ships with every unit.
