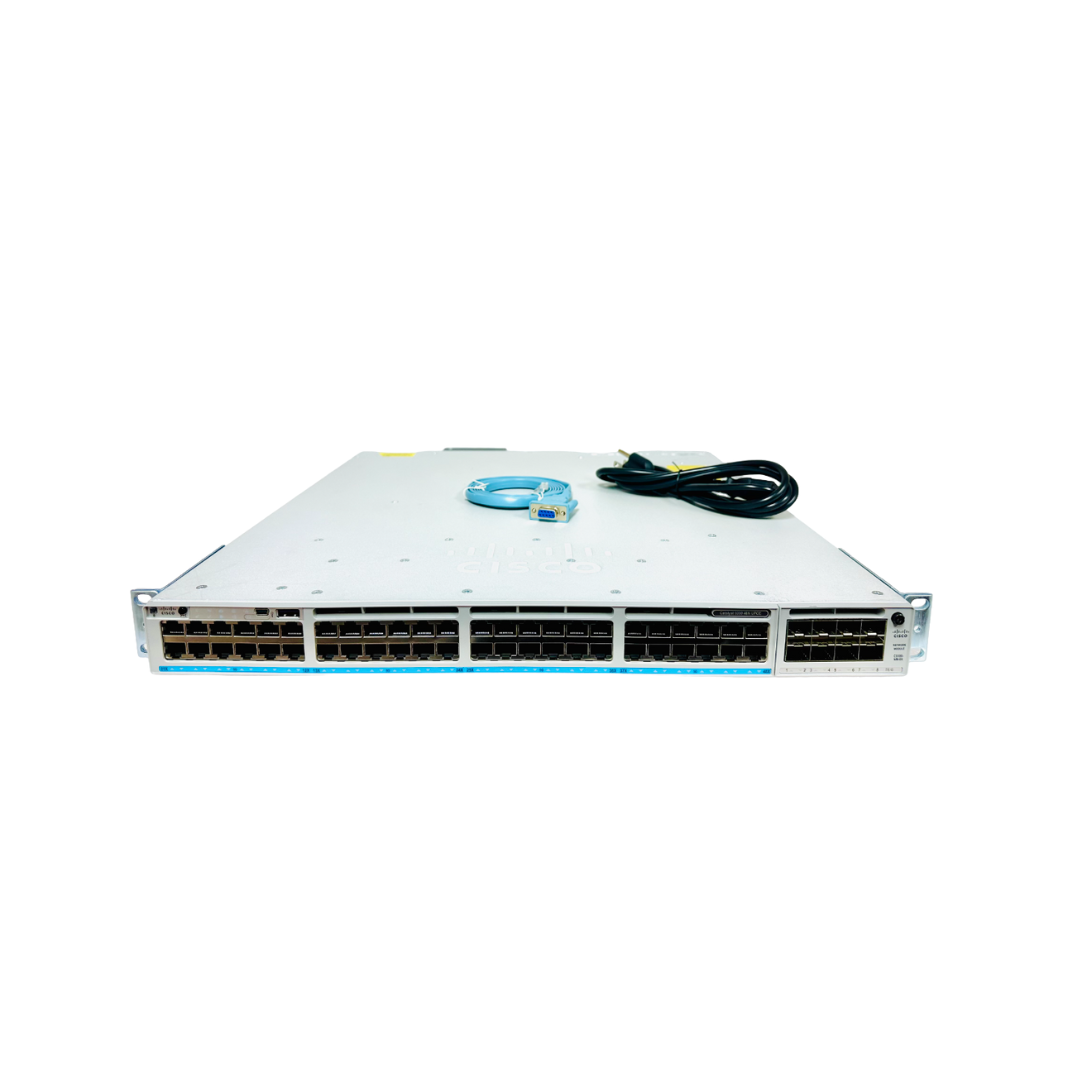

Cisco C9300-48UN-E Refurbished — 48-Port 5G UPOE Multigigabit Switch
MPN: C9300-48UN-E
Request Bulk Quote
Lifetime
Warranty
ISO 9001
Certified Testing
R2v3
Responsible Refurb
25+
Years
5K+
Customers
ISO
Certified
✓
Tested
Every WhaleyComm unit is professionally tested, reset to factory defaults, and certified by our in-house engineers — the same standard trusted by 5,000+ organisations across 25 years. Not a refurb marketplace. A certified lifecycle partner.
Professionally tested to factory specification. Backed by 25+ years of enterprise trust.
This refurbished Cisco C9300-48UN-E is a Catalyst 9300 Series enterprise access switch delivering 48 multigigabit copper ports at speeds of 100M, 1G, 2.5G, and 5G, each capable of Cisco Universal Power over Ethernet (UPOE) at up to 60W per port. Shipping with a Network Essentials IOS XE license, this unit has been professionally tested, reset to factory defaults, and verified against original Cisco hardware specifications. Every port, power system, and stacking interface has been validated through WhaleyComm's ISO 9001-certified testing process before shipment.The C9300-48UN-E is built on Cisco's dual UADP 2.0 ASIC architecture, delivering 640 Gbps of standalone switching capacity and a 476.19 Mpps forwarding rate. It supports Cisco StackWise-480, enabling up to eight switches to be stacked in a single logical unit with 480 Gbps of stacking bandwidth and sub-50ms failover. Modular uplink slots accept optional network modules for 1G, 10G, 25G, or 40G uplinks, providing investment protection as bandwidth demands grow. The switch ships with a default 1,100W AC power supply, with up to 645W of available PoE power in a standalone configuration.
At $1,849, this refurbished C9300-48UN-E delivers enterprise-grade multigigabit access switching at a significant discount from new list pricing. WhaleyComm has served 5,000+ enterprise customers over 25+ years — our refurbished Cisco hardware is backed by a Lifetime Warranty with no time limits and no questions asked.
Technical Specifications
Model
C9300-48UN-E
Product Series
Cisco Catalyst 9300
License Level
Network Essentials
Downlink Ports
48 x 5G copper UPOE (100M / 1G / 2.5G / 5G)
Uplink Configuration
Modular uplink slot (network module sold separately)
Switching Capacity
640 Gbps
Forwarding Rate
476.19 Mpps
MAC Address Table
32,000 entries
ASIC
Dual UADP 2.0
System Memory (DRAM)
8 GB
Flash Storage
16 GB
Stacking Technology
Cisco StackWise-480
Maximum Stack Size
8 units
Stacking Bandwidth
480 Gbps
PoE Standard
Cisco UPOE (up to 60W per port)
Default PoE Power Budget
645W
Default Power Supply
PWR-C1-1100WAC (1,100W AC)
Power Supply Slots
2 (dual redundant)
Fan Modules
3 field-replaceable, hot-swappable
Operating System
Cisco IOS XE
Form Factor
1U rack-mountable
Dimensions (H x W x D)
1.73 x 17.5 x 22.2 in (4.4 x 44.5 x 56.4 cm)
Weight
20.05 lb (9.09 kg)
Ideal Use Cases
Wi-Fi 6 and Wi-Fi 6E Access Point Aggregation
The 5G UPOE ports deliver the high-bandwidth, high-power connectivity that Wi-Fi 6 and Wi-Fi 6E access points demand, making this switch the ideal aggregation point for dense wireless deployments in enterprise campus environments.
High-Density Enterprise Campus Access
With 48 multigigabit UPOE ports and StackWise-480 stacking, the C9300-48UN-E supports large-scale wired access deployments where devices such as IP phones, video conferencing systems, and workstations require both high throughput and reliable PoE delivery.
IoT and Converged Device Aggregation
Cisco UPOE at up to 60W per port supports a wide range of IoT endpoints, PoE-powered cameras, and industrial devices, while the programmable UADP 2.0 ASIC provides the QoS and ACL capabilities needed to segment and secure converged traffic.
StackWise-480 Unified Wiring Closet
Up to eight C9300 switches can be stacked into a single logical unit with 480 Gbps of bandwidth and sub-50ms failover, enabling IT teams to manage entire wiring closets as a single switch with one IP address and one policy.
SD-Access Fabric Edge Node
The C9300-48UN-E serves as a validated fabric edge node for Cisco Software-Defined Access deployments, providing the security segmentation, automation, and policy enforcement required for intent-based networking initiatives.
What's Included
1x Cisco C9300-48UN-E Switch
1x PWR-C1-1100WAC Default AC Power Supply (installed)
Rack Mount Kit
Power Cord
Console Cable
Certificate of Testing
Lifetime Warranty — No Time Limits. No Questions.
Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it. We have stood behind our hardware for 25 years and 5,000+ customers — that is not a marketing line, it is our operating standard.
Compatibility Details
Review supported optics, cables, software, management protocols, and environment-specific compatibility guidance.
The Cisco C9300-48UN-E is compatible with the following network modules for the modular uplink slot
✓
C9300-NM-4G — 4x 1G SFP
✓
C9300-NM-8X — 8x 10G SFP+
✓
C9300-NM-2Q — 2x 40G QSFP+
✓
C9300-NM-2Y — 2x 25G SFP28
✓
C9300-NM-4M — 4x 1G/2.5G/5G/10G mGig
✓
Cisco Catalyst 3850 Series network modules are also supported in the C9300 platform.
Power supply options include
✓
PWR-C1-1100WAC (default, included)
✓
PWR-C1-1100WAC-P (Platinum-rated upgrade)
PWR-C1-715WAC
PWR-C1-350WAC
Stacking cables (sold separately)
STACK-T1-50CM
STACK-T1-1M
STACK-T1-3M
✓
CAB-SPWR-30CM (StackPower)
✓
CAB-SPWR-150CM (StackPower)
✓
The C9300-48UN-E runs Cisco IOS XE Release 16.5.1a or later. It is compatible with Cisco DNA Center for on-premises management and supports SD-Access fabric deployments.
For compatibility verification specific to your environment, contact our engineering team: +1 214 607-4800 or sales@whaleycomm.com
Shipping & Returns
Clear fulfilment, tracking, return, warranty, and support information for enterprise hardware orders.
Shipping
Orders typically ship within 1-2 business days after payment confirmation. Tracking details are shared once the order has been dispatched.
Returns
Eligible products can be returned according to WhaleyComm's return policy. For DOA, warranty, or product-related issues, contact the support team for replacement or resolution.
Frequently Asked Questions
Product-specific answers about compatibility, testing, warranty, fulfilment, and purchase confidence.
The suffix designates the IOS XE license level included with the switch. The -E model ships with Network Essentials, which includes Layer 2 switching, basic Layer 3 routing, and security features. The -A model ships with Network Advantage, which adds advanced capabilities such as EVPN VXLAN, Segment Routing, and full SD-Access fabric participation. Both models are identical in hardware.
No. Per the official Cisco datasheet, the default switch configuration does not include an uplink network module — the modular uplink slot is present but unpopulated. Compatible uplink modules include the C9300-NM-4G (4x1G), C9300-NM-8X (8x10G), C9300-NM-2Q (2x40G), and C9300-NM-2Y (2x25G), and must be ordered separately.
Yes. The C9300-48UN-E supports Cisco StackWise-480 and can be stacked with other Catalyst 9300 modular uplink models (C9300 SKUs) in any combination, up to eight units. It cannot be stacked with Catalyst 9300L fixed uplink models or Catalyst 3850/3650 series switches. Stacking cables (STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M) are sold separately.
Yes. Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it at no cost — no time limits, no questions asked.
Every unit goes through our ISO 9001-certified testing process: full power-on diagnostics, port-by-port functionality testing, firmware verification, factory reset, and final inspection. A Certificate of Testing ships with every unit.
