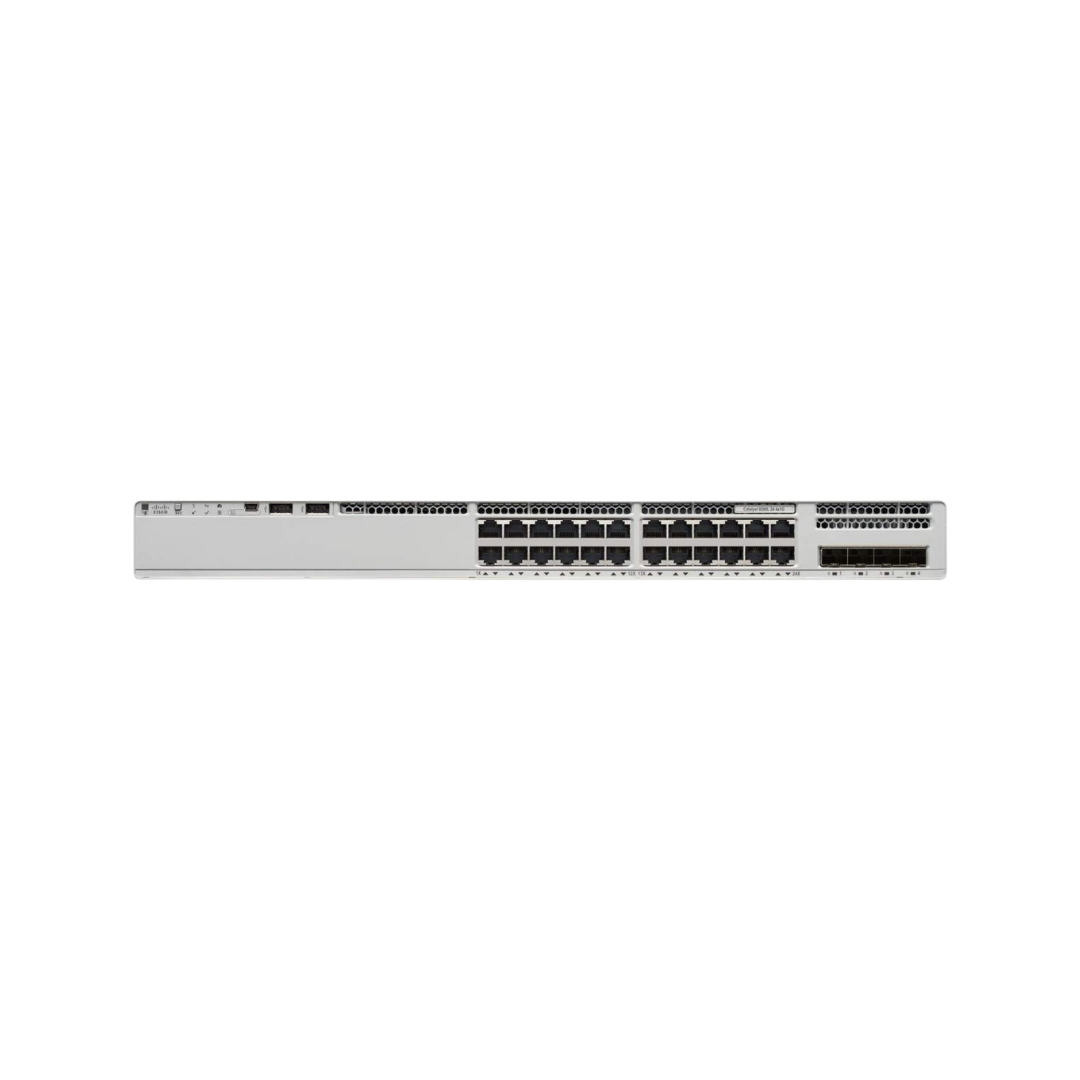

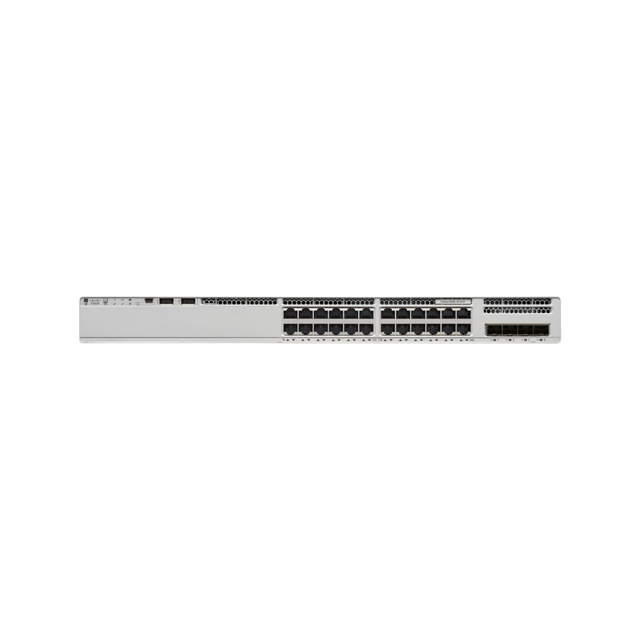

Cisco C9200L-24P-4X-E Refurbished — 24-Port PoE+ 4x10G Switch
MPN: C9200L-24P-4X-E
Request Bulk Quote
Lifetime
Warranty
ISO 9001
Certified Testing
R2v3
Responsible Refurb
25+
Years
5K+
Customers
ISO
Certified
✓
Tested
Every WhaleyComm unit is professionally tested, reset to factory defaults, and certified by our in-house engineers — the same standard trusted by 5,000+ organisations across 25 years. Not a refurb marketplace. A certified lifecycle partner.
Professionally tested. Factory reset. Backed by 25+ years of enterprise trust.
This refurbished Cisco C9200L-24P-4X-E is a Catalyst 9200L 24-port PoE+ managed switch with four fixed 10G SFP+ uplinks and a Network Essentials license. The unit ships professionally tested, reset to factory defaults, and covered by WhaleyComm's Lifetime Warranty. Every C9200L-24P-4X-E sold by WhaleyComm has passed our ISO 9001-certified testing process before it leaves the warehouse.The C9200L-24P-4X-E is built on the UADP 2.0 Mini ASIC and runs Cisco IOS XE, delivering 128 Gbps of switching capacity across 24 Gigabit Ethernet PoE+ downlink ports and four fixed 10 Gigabit SFP+ uplinks. The switch provides a 370W PoE+ budget by default, expandable to 740W with an optional secondary PWR-C5-600WAC power supply, making it capable of simultaneously powering high-density Wi-Fi 6 access points, IP phones, security cameras, and IoT devices. StackWise-80 technology supports stacking of up to eight C9200L switches at 80 Gbps aggregate stacking bandwidth, enabling unified management of up to 192 access ports from a single control plane.
At $1,995, this refurbished unit delivers enterprise-grade Cisco Catalyst 9000 performance at a significant discount versus new list pricing. WhaleyComm has served 5,000+ enterprise customers across 25+ years — our refurbished hardware carries the same Lifetime Warranty as every unit we ship.
Technical Specifications
Manufacturer
Cisco
Model Number
C9200L-24P-4X-E
Product Family
Cisco Catalyst 9200L Series
Switch Type
Managed Layer 3
Form Factor
1U rack-mountable
Operating System
Cisco IOS XE
Included License
Network Essentials
Downlink Ports
24 x 10/100/1000BASE-T PoE+ (RJ-45)
Uplink Ports
4 x 10G SFP+ (fixed)
PoE Standard
IEEE 802.3af (up to 15.4W per port), IEEE 802.3at PoE+ (up to 30W per port)
PoE Budget (Single PSU)
370W
PoE Budget (Dual PSU)
740W
Default Power Supply
PWR-C5-600WAC
Power Supply Slots
2 (1 included, 1 optional secondary)
Switching Capacity
128 Gbps
ASIC
UADP 2.0 Mini
Stacking Technology
Cisco StackWise-80
Stacking Bandwidth
80 Gbps
Maximum Stack Members
8
Fan Configuration
2 internal fixed fans (non-removable)
Security
AES-128 MACsec encryption, Secure Boot, IEEE 802.1X
Energy Certification
ENERGY STAR certified
Ideal Use Cases
High-Density Wireless Access Layer
The 370W PoE+ budget and four 10G uplinks make this switch ideal for deploying dense Wi-Fi 6 access point environments without external power injectors or uplink bottlenecks.
Campus Branch Access
With Network Essentials licensing and IOS XE, the C9200L-24P-4X-E provides the Layer 2/3 features, security policies, and Cisco DNA Center integration required for standardized campus branch deployments.
Unified Communications and IP Telephony
IEEE 802.3af/at compliance and per-port PoE power sensing allow reliable, priority-managed power delivery to IP phones and video conferencing endpoints across all 24 ports simultaneously.
Physical Security and IoT Convergence
The 24-port PoE+ capacity supports mixed deployments of IP cameras, access control readers, and IoT sensors on a single managed switch with AES-128 MACsec link encryption.
Scalable Stacked Access
StackWise-80 allows up to eight C9200L switches to be managed as a single virtual unit, giving network teams a scalable path to 192 access ports under one management plane without adding distribution complexity.
What's Included
1 x Cisco C9200L-24P-4X-E Switch (refurbished)
1 x PWR-C5-600WAC AC Power Supply
Rack mount kit
Certificate of Testing
Lifetime Warranty — No Time Limits. No Questions.
Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it. We have stood behind our hardware for 25 years and 5,000+ customers — that is not a marketing line, it is our operating standard.
Compatibility Details
Review supported optics, cables, software, management protocols, and environment-specific compatibility guidance.
COMPATIBLE PLATFORMS
The Cisco C9200L-24P-4X-E is compatible with the following
✓
Stacking: Compatible with other C9200L fixed-uplink models using the C9200L-STACK-KIT.
✓
Not compatible with C9200 modular-uplink models or other Catalyst switch families for stacking.
COMPATIBLE OPTICS & CABLES
✓
Uplink Transceivers: 4x SFP+ slots support Cisco-compatible 10GBASE-SR, 10GBASE-LR, and other Cisco-qualified SFP+ modules.
✓
For a full compatibility matrix, refer to the Cisco Transceiver Modules Compatibility list at cisco.com.
SOFTWARE COMPATIBILITY
✓
Management: Compatible with Cisco Catalyst Center (formerly DNA Center), Cisco Identity Services Engine (ISE), and Cisco IOS XE CLI management.
ADDITIONAL COMPATIBILITY
✓
Power Supplies: PWR-C5-600WAC (included), PWR-C5-715WDC (optional DC).
✓
Supports mixed AC and DC PSUs as primary and secondary.
For compatibility verification specific to your environment, contact our engineering team: +1 214 607-4800 or sales@whaleycomm.com
Shipping & Returns
Clear fulfilment, tracking, return, warranty, and support information for enterprise hardware orders.
Shipping
Orders typically ship within 1-2 business days after payment confirmation. Tracking details are shared once the order has been dispatched.
Returns
Eligible products can be returned according to WhaleyComm's return policy. For DOA, warranty, or product-related issues, contact the support team for replacement or resolution.
Frequently Asked Questions
Product-specific answers about compatibility, testing, warranty, fulfilment, and purchase confidence.
The only difference is the included software license. The -E model ships with Network Essentials, which provides foundational Layer 3 features including Static Routing, RIP, and OSPF Routed Access. The -A model ships with Network Advantage, which adds advanced features such as EIGRP, ISIS, and enhanced programmability. Both models share identical hardware.
Yes. The switch ships with one PWR-C5-600WAC power supply installed and includes a second empty PSU slot. Adding a second PWR-C5-600WAC increases the available PoE budget from 370W to 740W, allowing you to power all 24 ports at full 30W PoE+ simultaneously.
No. Cisco StackWise-80 stacking on the C9200L is only compatible with other C9200L fixed-uplink switches using the C9200L-STACK-KIT. Mixed stacking with C9200 modular-uplink models or other Catalyst switch families is not supported.
Yes. Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it at no cost — no time limits, no questions asked.
Every unit goes through our ISO 9001-certified testing process: full power-on diagnostics, port-by-port functionality testing, firmware verification, factory reset, and final inspection. A Certificate of Testing ships with every unit.
