REFURBISHED
Cisco

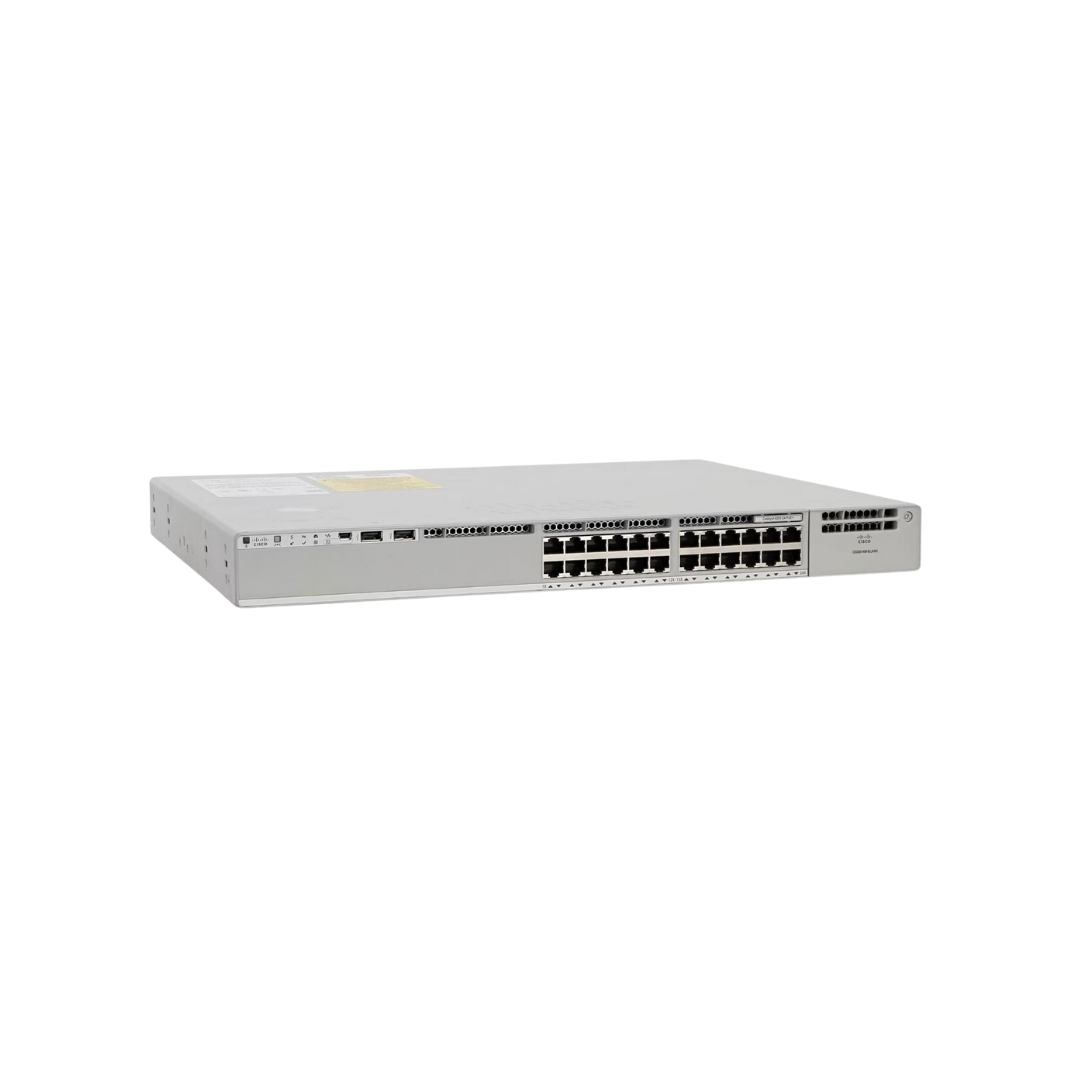

Cisco C9200-24P-E Catalyst 9200 24-Port PoE+ Refurbished Switch
MPN: C9200-24P-E
Request Bulk Quote
Lifetime
Warranty
ISO 9001
Certified Testing
R2v3
Responsible Refurb
25+
Years
5K+
Customers
ISO
Certified
✓
Tested
Every WhaleyComm unit is professionally tested, reset to factory defaults, and certified by our in-house engineers — the same standard trusted by 5,000+ organisations across 25 years. Not a refurb marketplace. A certified lifecycle partner.
Professionally tested. Factory reset. Backed by 25+ years of enterprise trust.
This refurbished Cisco C9200-24P-E is a Catalyst 9200 Series 24-port PoE+ access switch running Network Essentials software. Each unit is professionally tested and reset to factory defaults before shipment, delivering the same reliable performance as new at a fraction of the cost. The C9200-24P-E ships with one PWR-C6-600WAC power supply and supports a second redundant hot-swappable power supply, bringing the total PoE budget to 740W across all 24 IEEE 802.3at PoE+ ports.Powered by Cisco IOS XE and the UADP 2.0 Mini ASIC, the C9200-24P-E delivers 128 Gbps switching capacity and a 95.23 Mpps forwarding rate in standalone mode, scaling to 288 Gbps and 214 Mpps when stacked. Optional StackWise-160 support allows up to eight switches to operate as a single logical unit with 160 Gbps of stacking bandwidth and a unified management and control plane for up to 384 access ports. A single modular uplink slot accepts field-replaceable network modules — including the C9200-NM-4G for 4x1G SFP or the C9200-NM-4X for 4x10G SFP+ — enabling nondisruptive migration from 1G to 10G uplinks without replacing the switch. Layer 3 routing including OSPF, EIGRP, ISIS, and RIP is supported natively, and AES-128 MACsec encryption secures traffic at the port level.
For enterprise teams managing network refresh cycles, the refurbished C9200-24P-E delivers proven Catalyst 9200 architecture at a significant cost savings versus new list price. WhaleyComm is ISO 9001, R2v3, and e-Stewards certified with 25+ years of experience and 5,000+ enterprise customers. Every unit is covered by our Lifetime Warranty — no time limits, no questions asked.
Technical Specifications
MPN
C9200-24P-E
Brand
Cisco
Series
Catalyst 9200
Condition
Refurbished
Downlink Ports
24 x 10/100/1000 Mbps PoE+ (RJ-45)
PoE Standard
IEEE 802.3at (PoE+), up to 30W per port
PoE Budget (1 PSU)
370W
PoE Budget (2 PSUs)
740W
Uplink Configuration
1 modular uplink slot (field-replaceable network module)
Supported Uplink Modules
C9200-NM-4G (4x 1G SFP), C9200-NM-4X (4x 10G SFP+)
Switching Capacity
128 Gbps (standalone); 288 Gbps (stacked)
Forwarding Rate
95.23 Mpps (standalone); 214 Mpps (stacked)
Stacking Technology
StackWise-160
Stacking Bandwidth
Up to 160 Gbps
Max Stack Members
8 switches
Max Stack Access Ports
384
ASIC
UADP 2.0 Mini
Operating System
Cisco IOS XE
Software License
Network Essentials
Layer
Layer 3
MAC Address Table
32,000 entries
VLAN Support
4,096 VLAN IDs
Jumbo Frames
9,198 bytes
RAM
4 GB DRAM
Flash Memory
4 GB
Security
AES-128 MACsec encryption
Layer 3 Routing Protocols
OSPF, EIGRP, ISIS, RIP
Power Supply (Included)
1x PWR-C6-600WAC
Power Supply Slots
2 (supports redundant hot-swap second PSU)
Fans
FRU redundant (field-replaceable)
Dimensions (H x W x D)
1.73 x 17.5 x 15.4 in. (4.4 x 44.4 x 39.1 cm)
Form Factor
1U rack-mountable
Console Port
RJ-45
USB Ports
2x USB (includes USB Type-A and USB-C/Mini-USB)
Management
CLI (console/SSH/Telnet), Web GUI, SNMP, Cisco Catalyst Center, Cisco Meraki Dashboard (cloud monitoring)
Ideal Use Cases
Enterprise Campus Access Layer
The C9200-24P-E is purpose-built as an enterprise access switch, delivering PoE+ to IP phones, wireless access points, and security cameras across campus floors or office wings with a single managed platform.
Branch Office Deployment
With StackWise-160, modular uplinks, and Cisco Plug and Play support, the C9200-24P-E simplifies branch rollouts — new sites can be provisioned remotely via Cisco Catalyst Center without requiring on-site technical staff.
Wi-Fi 6 Access Point Powering
Each of the 24 PoE+ ports delivers up to 30W, making the C9200-24P-E well-suited to power high-density Wi-Fi 6 and Wi-Fi 6E access points that require full IEEE 802.3at power budgets.
Network Refresh or Budget-Constrained Upgrade
Organizations replacing end-of-life Catalyst 2960-X or 3750 switches can adopt the C9200-24P-E as a refurbished, cost-effective path to IOS XE, StackWise-160, and modern Layer 3 capabilities without the full new-unit capital expenditure.
Stacked Access Layer Virtualization
Up to eight C9200-24P-E units can be stacked via StackWise-160 to form a single logical switch with a unified control plane — ideal for distribution closets requiring a high port count under centralized management.
Secure Segmented Network Environments
AES-128 MACsec port-level encryption, OSPF and EIGRP routing, policy-based segmentation, and Cisco ISE integration make the C9200-24P-E appropriate for environments with compliance requirements such as healthcare, finance, or government access networks.
What's Included
1x Cisco C9200-24P-E Catalyst 9200 24-Port PoE+ Switch
1x PWR-C6-600WAC AC Power Supply
1x AC Power Cord
Rack-Mount Kit
Certificate of Testing
Lifetime Warranty — No Time Limits. No Questions.
Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it. We have stood behind our hardware for 25 years and 5,000+ customers — that is not a marketing line, it is our operating standard.
Compatibility Details
Review supported optics, cables, software, management protocols, and environment-specific compatibility guidance.
Uplink Network Modules (ordered separately)
✓
C9200-NM-4G — 4x 1G SFP uplink module
✓
C9200-NM-4X — 4x 10G SFP+ uplink module
✓
C9200-NM-BLANK — Blank module (no uplinks)
Redundant Power Supply (ordered separately)
✓
PWR-C6-600WAC — 600W AC (same model as included PSU)
✓
PWR-C6-715WDC — 715W DC power supply option
StackWise-160 Stacking (ordered separately)
✓
C9200-STACK-KIT — Includes two stack adapters and one 0.5m stacking cable
✓
STACK-T4-50CM, STACK-T4-1M, STACK-T4-3M — Stacking cable options
Fan Module (ordered separately)
✓
C9200-FAN= — Field-replaceable fan module
Compatible Stack Partners
✓
Cisco Catalyst 9200 modular (C9200 SKU) switches only
✓
Note: Cannot stack with C9200L fixed SKUs, Catalyst 9300, Catalyst 2960-X, or Catalyst 2960-XR
Management Platforms
✓
Cisco Catalyst Center (formerly Cisco DNA Center)
✓
Cisco Identity Services Engine (ISE)
✓
Cisco Meraki Dashboard (cloud monitoring)
✓
Cisco IOS XE CLI, SNMP, SSH
For compatibility verification specific to your environment, contact our engineering team: +1 214 607-4800 or sales@whaleycomm.com
Shipping & Returns
Clear fulfilment, tracking, return, warranty, and support information for enterprise hardware orders.
Shipping
Orders typically ship within 1-2 business days after payment confirmation. Tracking details are shared once the order has been dispatched.
Returns
Eligible products can be returned according to WhaleyComm's return policy. For DOA, warranty, or product-related issues, contact the support team for replacement or resolution.
Frequently Asked Questions
Product-specific answers about compatibility, testing, warranty, fulfilment, and purchase confidence.
Both models are identical in hardware — 24 PoE+ ports, the same switching capacity, and the same physical chassis. The suffix indicates the software license tier: the -E model ships with Network Essentials, while the -A model ships with Network Advantage. Network Advantage adds advanced features including MPLS, EVPN VXLAN, and Segment Routing. Either license tier can be upgraded independently of the hardware.
No. The switch ships with one modular uplink slot but no network module installed. You must order a compatible module separately — the C9200-NM-4G provides 4x1G SFP uplinks, and the C9200-NM-4X provides 4x10G SFP+ uplinks. The slot is hot-swappable and field-replaceable.
No. The C9200-24P-E uses StackWise-160 and can only be stacked with other modular C9200 SKUs. It cannot be stacked with fixed C9200L models, Catalyst 9300, Catalyst 2960-X, or 2960-XR switches. Mixed stacking between these families is not supported.
Yes. Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it at no cost — no time limits, no questions asked.
Every unit goes through our ISO 9001-certified testing process: full power-on diagnostics, port-by-port functionality testing, firmware verification, factory reset, and final inspection. A Certificate of Testing ships with every unit.
Cisco C9200-24P-E Catalyst 9200 24-Port PoE+ Refurbished Switch
$899.00
Cisco
Cisco C9200-24P-E Catalyst 9200 24-Port PoE+ Refurbished Switch
MPN: C9200-24P-E
$899.00
Sold Out
