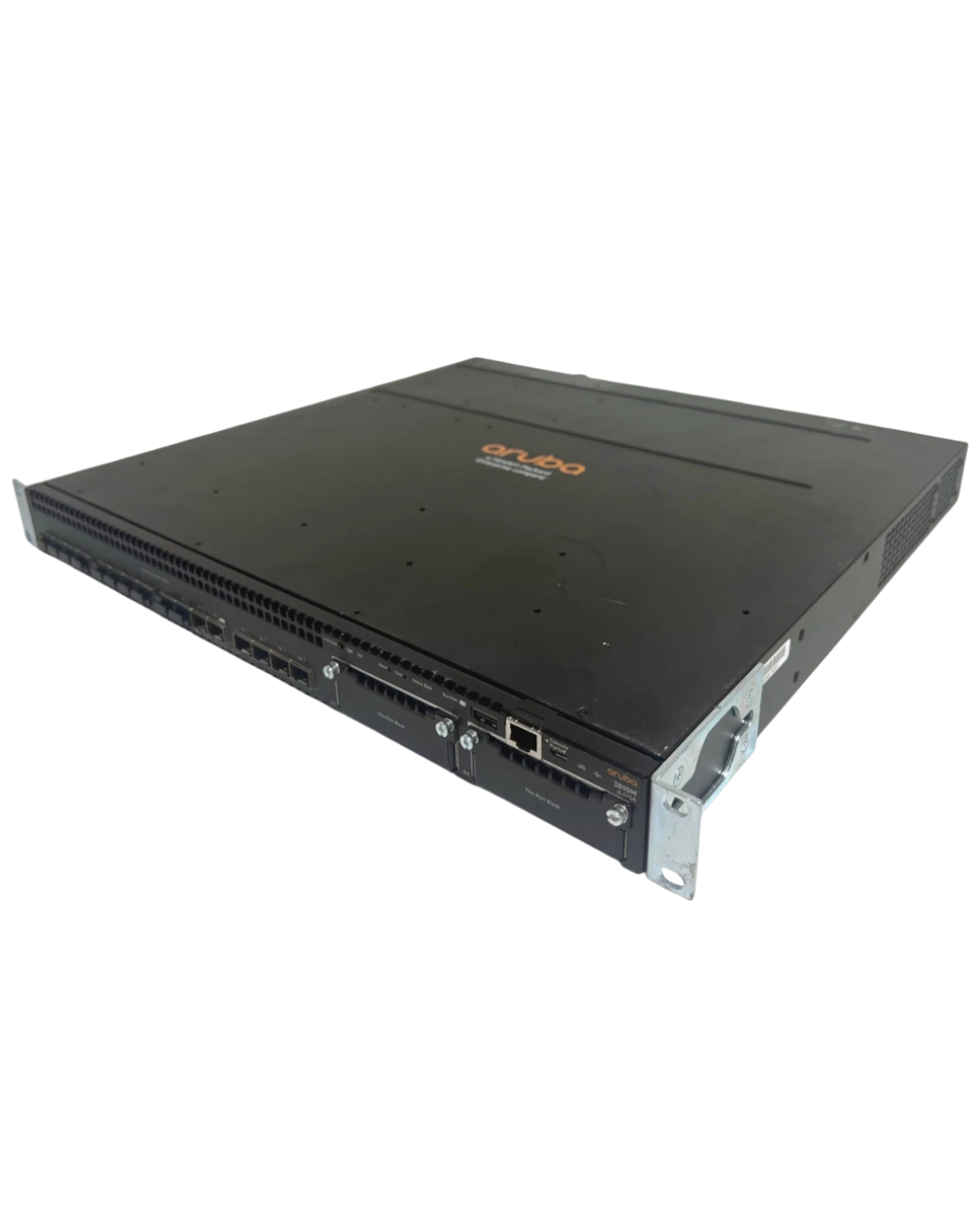

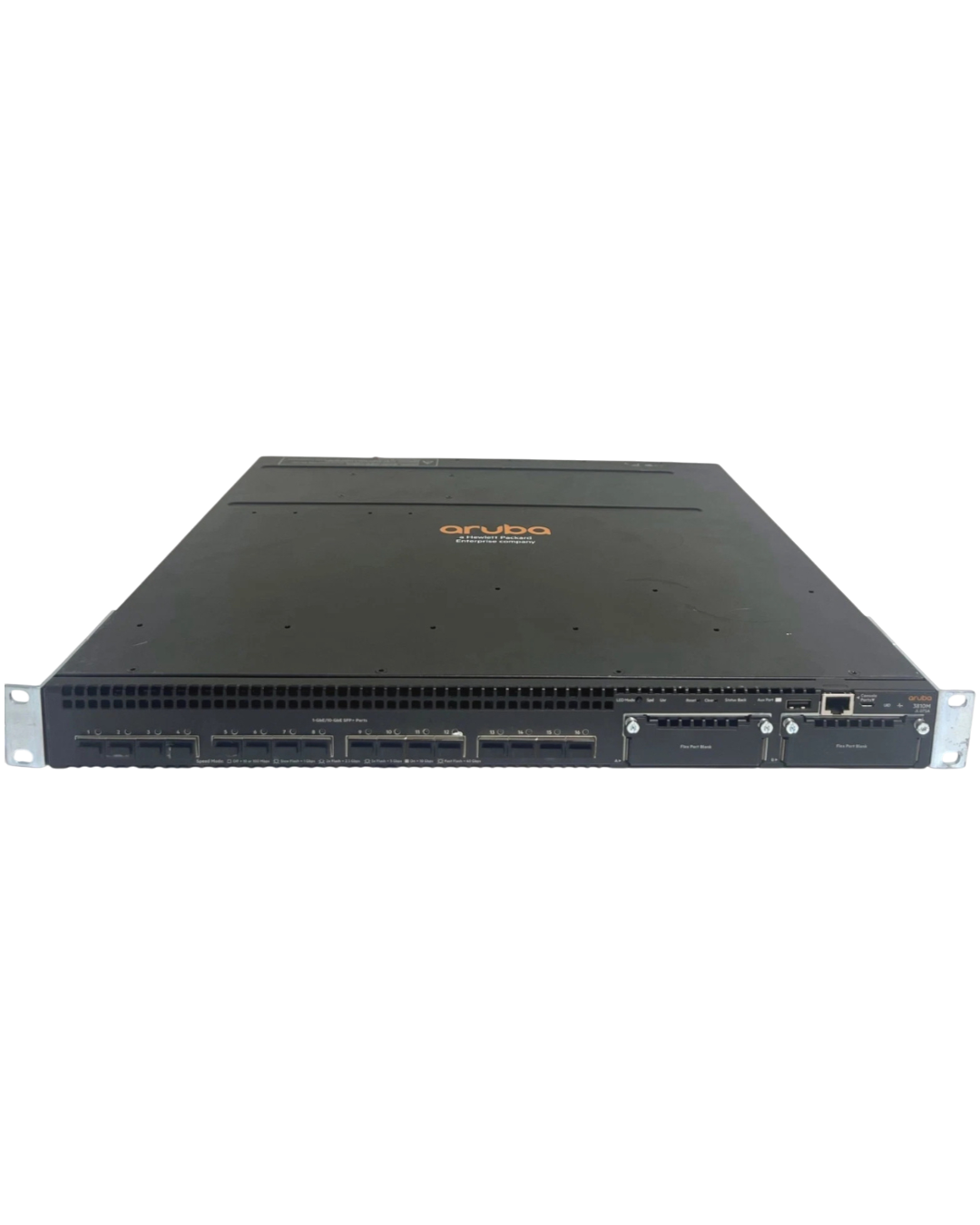

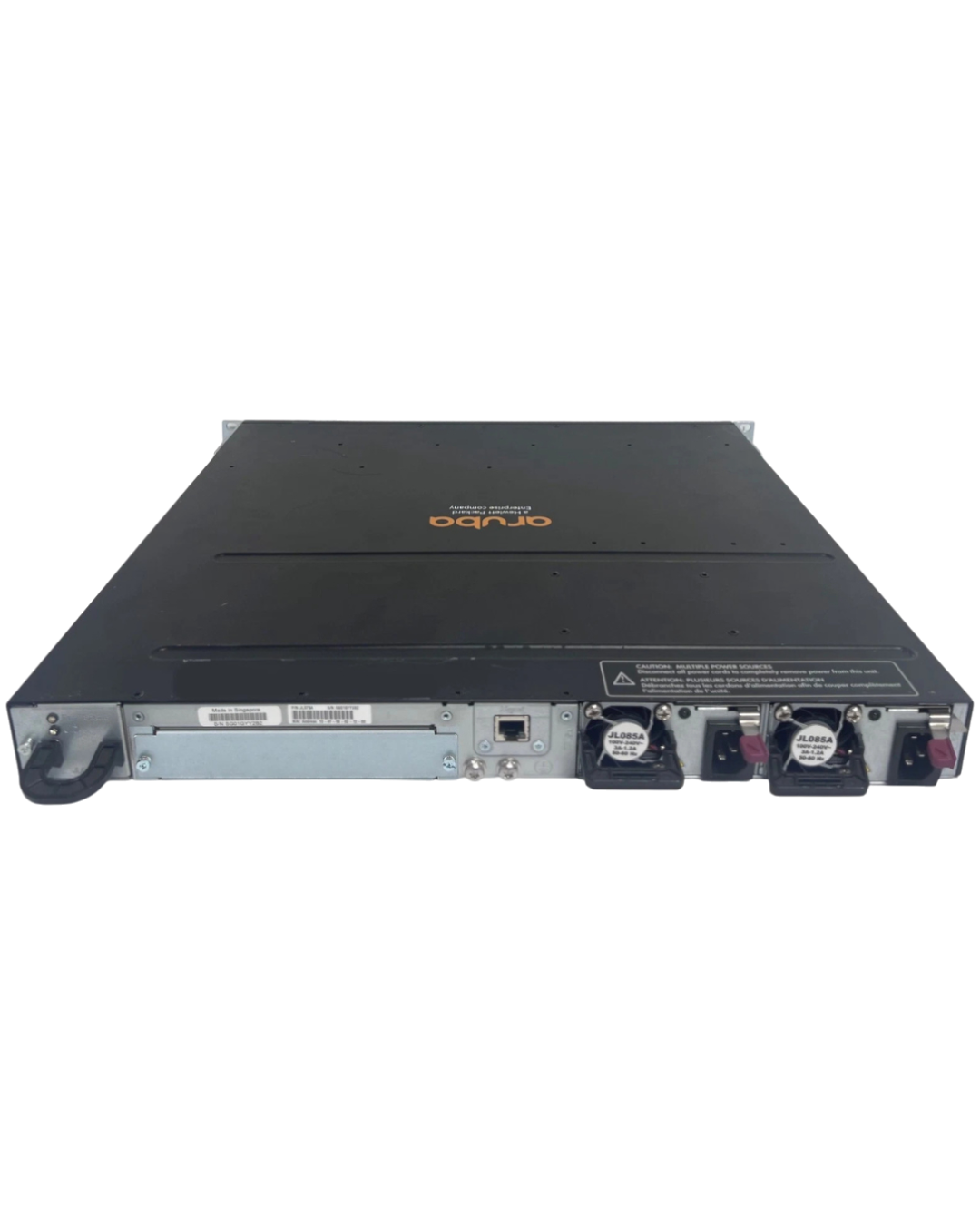

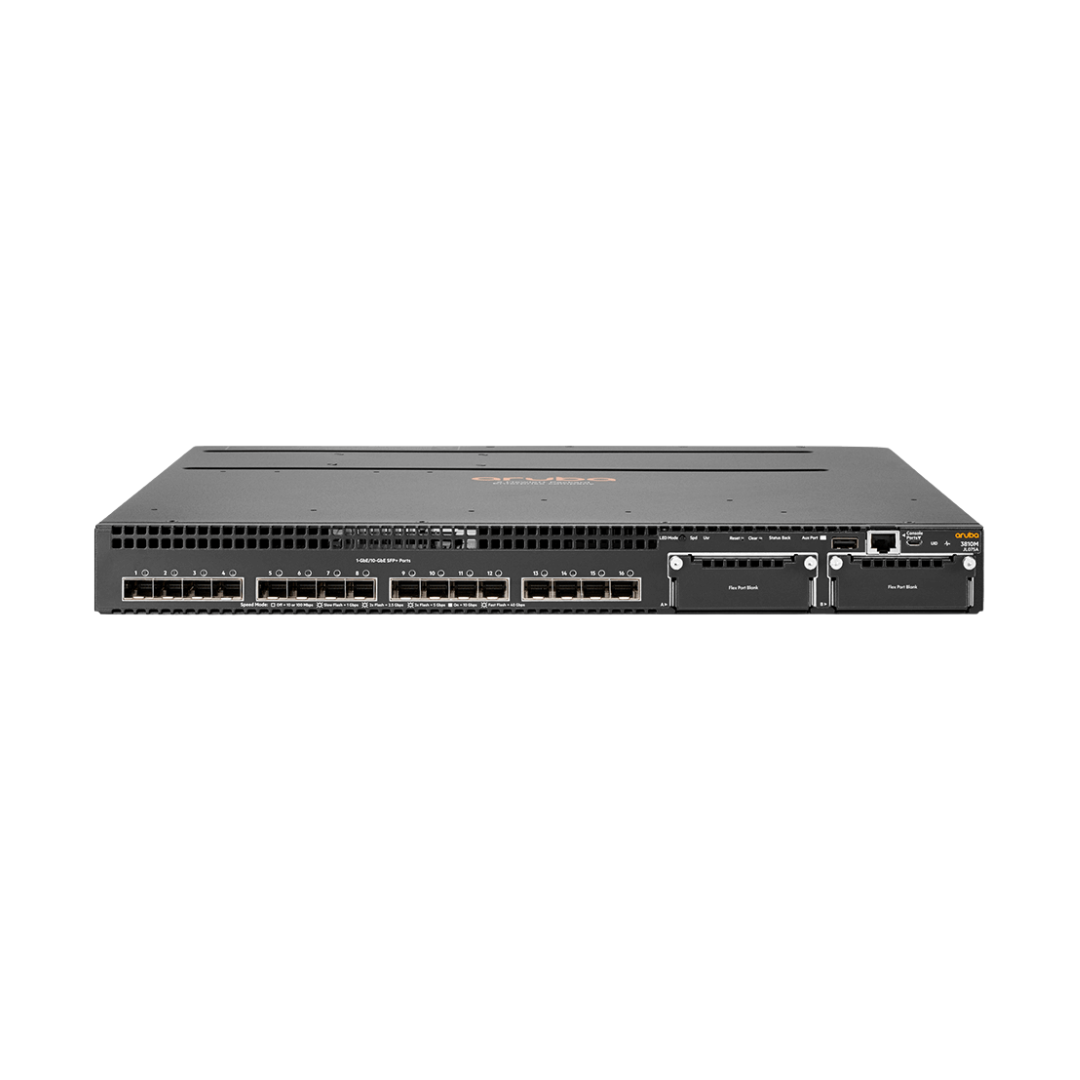

Aruba JL075A 3810M 16SFP+ 2‑Slot Modular Switch

The Aruba JL075A is a high‑performance, modular Aruba 3810M Series switch designed for enterprise campus aggregation and high‑density access deployments. Featuring 16× 10GbE SFP+ ports and two modular interface slots, the JL075A delivers exceptional flexibility, scalability, and resiliency for modern enterprise networks.

Powered by ArubaOS‑Switch and the Aruba ProVision ASIC, the 3810M provides advanced Layer 3 routing, VSF stacking, robust security, and intelligent traffic management. Its modular design supports a wide range of uplink and expansion modules, making it ideal for high‑performance campus cores, distribution layers, and demanding access environments.

Key Features

• 16× 10GbE SFP+ ports
• 2× modular interface slots for uplinks or expansion modules
• Advanced Layer 3 routing (OSPF, BGP, PIM, VRRP, etc.)
• VSF stacking for multi‑chassis resiliency
• Aruba ProVision ASIC for high throughput and low latency
• Modular power supply options (hot‑swappable)
• Modular fan trays (hot‑swappable)
• MACsec support (with appropriate modules)
• High‑availability design for campus core/distribution
• ArubaOS‑Switch with full enterprise feature set

Technical Specifications

• Model: JL075A
• Series: Aruba 3810M
• Ports: 16× SFP+ (10GbE)
• Expansion: 2× interface module slots
• Switching Capacity: 608 Gbps (3810M series spec)
• Throughput: 455 Mpps
• Stacking: VSF up to 10 members
• Routing: Full Layer 3 (OSPF, BGP, RIP, PIM, VRRP)
• Power Supplies: Modular, hot‑swappable (various wattages)
• Fans: Modular, hot‑swappable
• Operating System: ArubaOS‑Switch
• Form Factor: 1U modular chassis

Ideal Use Cases

• Enterprise campus core
• High‑performance distribution layer
• High‑density 10GbE access aggregation
• Multi‑chassis resilient designs (VSF)
• Environments requiring modular uplinks and power redundancy

What’s Included

• Aruba JL075A 3810M 16SFP+ 2‑slot Switch
• Rackmount kit (brackets + screws)
• Power supply and fan modules
