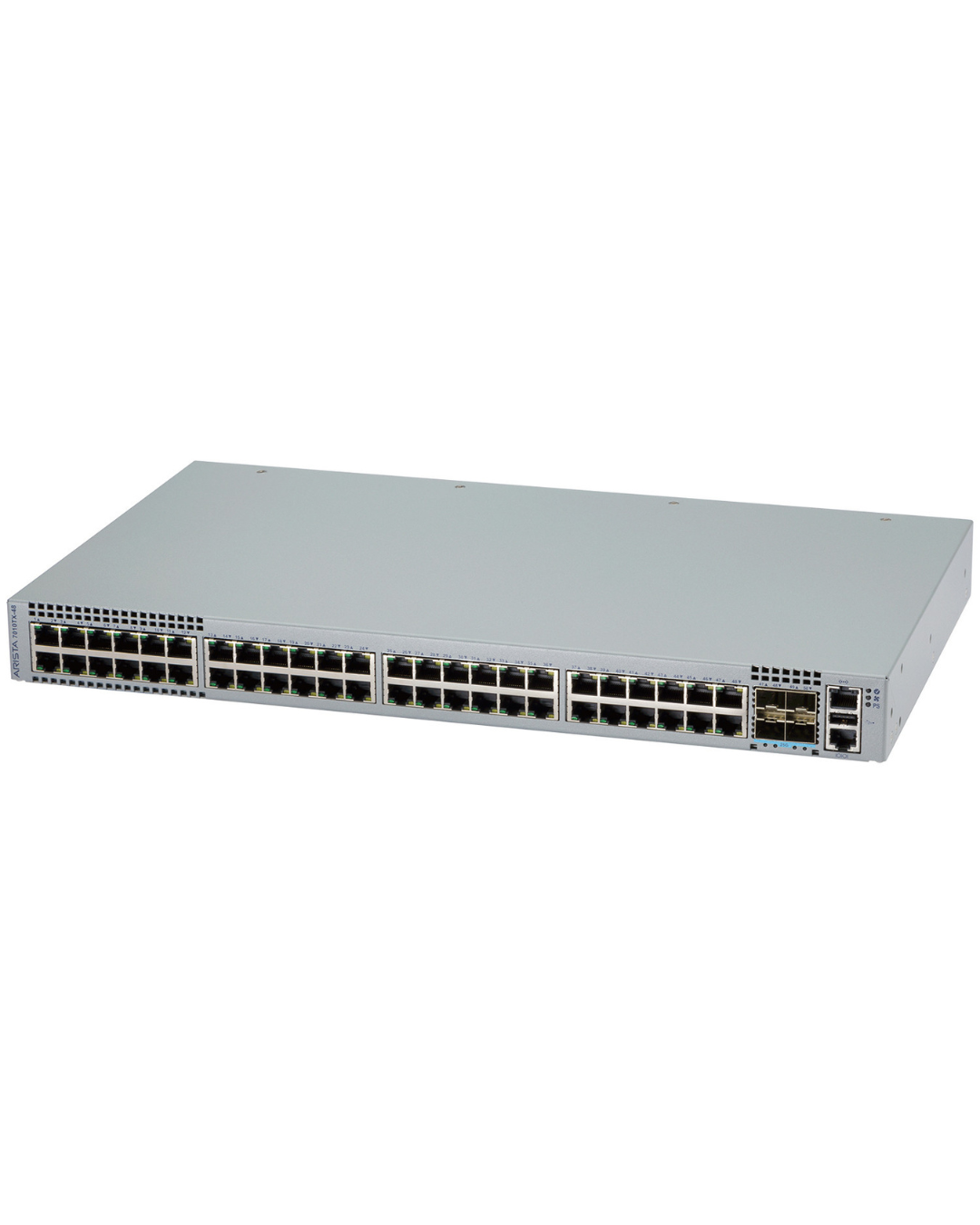

Arista DCS‑7010TX‑48‑DC-F/R — 48‑Port 1000BASE‑T + 4×1/10/25GbE SFP+ DC‑Powered Switch

The Arista DCS‑7010TX‑48‑DC is a compact, power‑efficient 48‑port 10/100/1000 RJ45 switch with 4× 1/10/25GbE SFP/SFP+ uplinks, designed for high‑density 1G access, out‑of‑band (OOB) management networks, and modern data center leaf deployments. With DC power input, reversible airflow, and hot‑swappable components, the 7010TX‑48‑DC delivers enterprise‑class reliability in a small 1U footprint.

Built on the Arista 7010X architecture, the switch provides 296 Gbps of switching capacity, 220 Mpps forwarding, under 3 µs latency, and a fully shared 4 MB dynamic packet buffer. The platform supports wire‑speed Layer 2 and Layer 3 forwarding, VXLAN, EVPN, MLAG, 64‑way ECMP, and the full Arista EOS automation and telemetry suite including LANZ, ZTP, sFlow, and CloudVision integration.

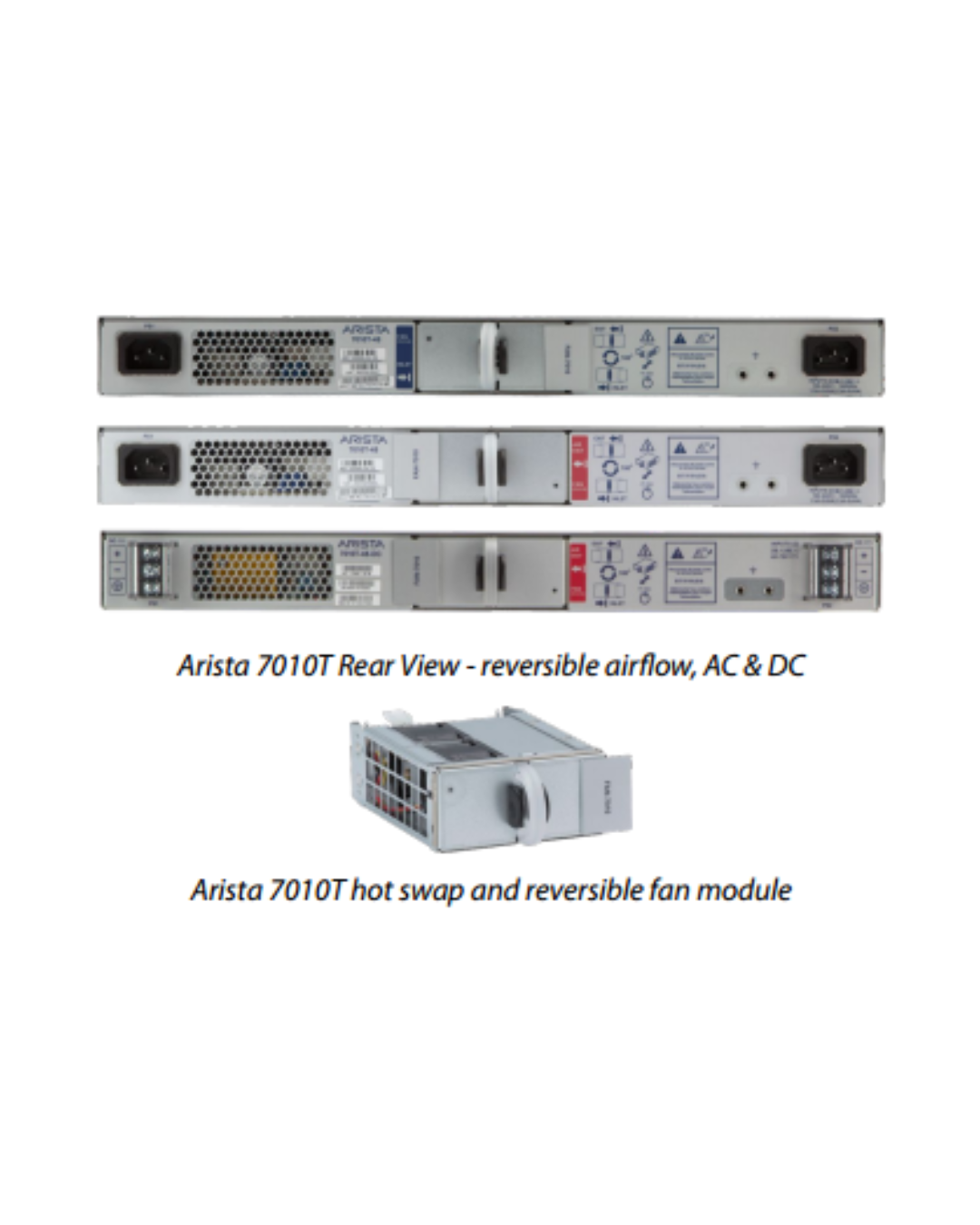

The ‑DC model includes dual redundant DC power supplies and supports front‑to‑rear or rear‑to‑front airflow via a reversible fan module.

Key Features

• 48× 10/100/1000 RJ45 ports
• 4× 1/10/25GbE SFP/SFP+ uplinks
• 296 Gbps switching capacity
• 220 Mpps forwarding rate
• Latency from 2.8 µs
• 4 MB fully shared dynamic packet buffer
• Dual DC power supplies (1+1 redundant)
• Reversible airflow (front‑to‑rear or rear‑to‑front)
• Low power consumption: 56W typical / 75W max
• Compact 1U design (17.3 × 1.71 × 10.8 in)
• 8.6 lb lightweight chassis
• Runs Arista EOS (G2 license group)
• Supports ZTP, LANZ, SSU, VM Tracer, CloudVision

Ideal Use Cases

• High‑density 1G server access
• Out‑of‑band (OOB) management networks
• Campus access switching
• Leaf nodes in 1G/10G/25G data center fabrics
• Environments requiring DC power input
• Low‑latency, low‑power data center deployments

What’s Included

• Arista DCS‑7010TX‑48‑DC Switch
• Reversible fan module
• Rackmount kit
• Console cable
