Every WhaleyComm unit is professionally tested, reset to factory defaults, and certified by our in-house engineers — the same standard trusted by 5,000+ organisations across 25 years. Not a refurb marketplace. A certified lifecycle partner.
Enterprise-grade WAN performance in 1RU. Professionally tested. Backed by a Lifetime Warranty.

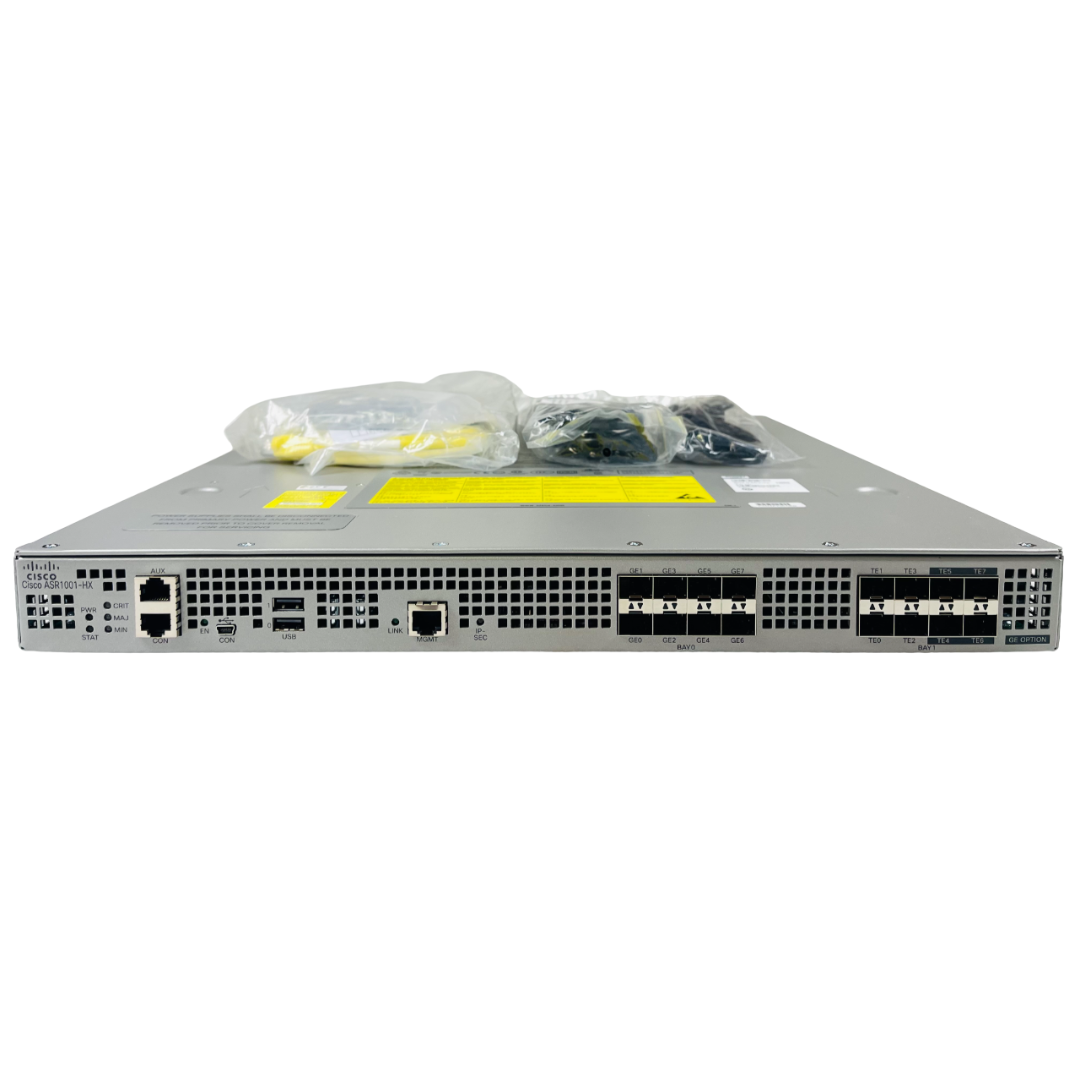

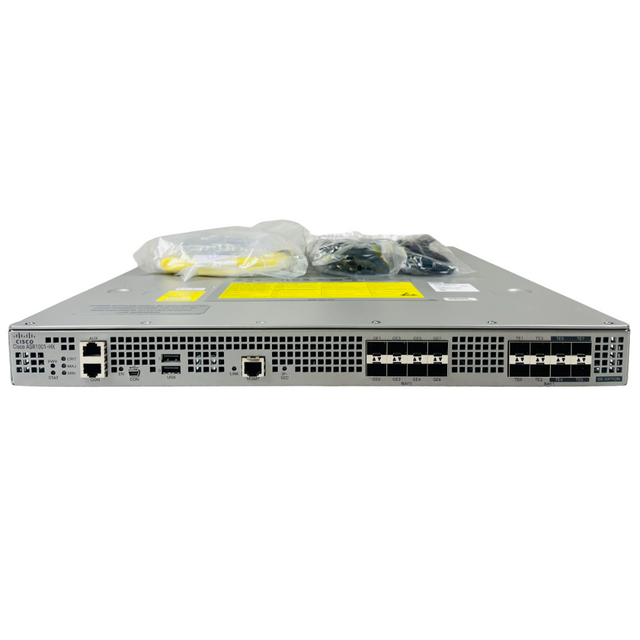

This refurbished Cisco ASR1001-HX is a high-performance 1-rack-unit aggregation services router featuring 8x10GE and 8x1GE built-in ports and dual redundant power supplies. Every unit is professionally tested, reset to factory defaults, and ships from WhaleyComm's ISO 9001, R2v3, and e-Stewards certified facility. The ASR1001-HX delivers up to 60 Gbps of system throughput in a compact 1RU form factor, making it one of the most powerful fixed-platform edge routers in its class.
Powered by the 2nd-generation Cisco Quantum Flow Processor ASIC, the ASR1001-HX features 4 fixed 10GE ports, 8 fixed 1GE ports, and 4 additional ports that can be configured as either 10GE or 1GE, providing migration flexibility as network demands grow. The platform runs Cisco IOS XE Software and supports a broad feature set including MPLS, BGP, OSPF, IS-IS, L2VPN, L3VPN, DMVPN, FlexVPN, SD-WAN, NAT, deep packet inspection, QoS, NetFlow, MACsec, and In-Service Software Upgrade (ISSU). On-demand hardware-accelerated crypto throughput reaches up to 29 Gbps. DRAM starts at 8 GB and is upgradable to 16 GB.
Purchasing refurbished through WhaleyComm delivers enterprise Cisco hardware at a significant discount versus new list pricing — without sacrificing reliability. With 25+ years of experience and 5,000+ enterprise customers served, WhaleyComm is a trusted source for certified refurbished Cisco equipment. Every ASR1001-HX ships with our no-questions, no-time-limit Lifetime Warranty.
Technical Specifications
Form Factor
1U Rack-Mountable
System Throughput
Up to 60 Gbps
Fixed 10GE Ports
4x 10GE (SFP+)
Fixed 1GE Ports
8x 1GE (SFP)
Configurable Ports
4x ports configurable as 10GE or 1GE
On-Demand Crypto Throughput
Up to 29 Gbps
DRAM
8 GB default, upgradable to 16 GB
Operating System
Cisco IOS XE
Processor
2nd Generation Cisco Quantum Flow Processor (Yoda ASIC)
Power Supplies
Dual (1+1 redundant, hot-swappable)
AC Power Supply Model
ASR1KX-AC-750W-R
DC Power Supply Model
ASR1KX-DC-950W-R
Max Power Consumption (AC)
750 W
Max Power Consumption (DC)
750 W
Height
1.72 in (43.69 mm)
Width
17.3 in (439.42 mm)
Depth
21.78 in (553.2 mm)
Operating Temperature
32 to 104 degrees F (0 to 40 degrees C)
Storage Temperature
-4 to 158 degrees F (-20 to +70 degrees C)
Ideal Use Cases
WAN Aggregation
The ASR1001-HX is purpose-built for enterprise WAN aggregation, consolidating multiple high-speed WAN links at the network edge with up to 60 Gbps of system throughput in a compact 1RU chassis.
Internet Edge Routing
With support for BGP, OSPF, IS-IS, and a full suite of enterprise routing protocols, the ASR1001-HX serves as a high-performance internet edge router capable of handling large routing tables and diverse peering arrangements.
Secure VPN and Encrypted WAN
Hardware-accelerated IPsec crypto throughput up to 29 Gbps, combined with support for DMVPN, FlexVPN, and GETVPN, makes the ASR1001-HX ideal for deploying large-scale encrypted WAN overlays.
SD-WAN Deployment
The ASR1001-HX is Cisco SD-WAN ready on IOS XE, enabling enterprises to deploy cloud-managed or on-premises SD-WAN at scale with throughput-based license upgrades as bandwidth needs grow.
MPLS and L2/L3 VPN Services
Full MPLS, LDP, RSVP, VPLS, L2VPN, and L3VPN support makes the ASR1001-HX a strong choice for service providers and enterprises requiring carrier-grade VPN and traffic engineering capabilities.
Data Center Interconnect
The router's 10GE port density, MACsec encryption support, and high forwarding throughput make it well-suited for point-to-point and point-to-multipoint data center interconnect (DCI) topologies.
What's Included
1x Cisco ASR1001-HX Router
2x Power Supply Units (AC: ASR1KX-AC-750W-R)
Rack-mount hardware
Certificate of Testing
Lifetime Warranty — No Time Limits. No Questions.
Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it. We have stood behind our hardware for 25 years and 5,000+ customers — that is not a marketing line, it is our operating standard.
🔌
Compatibility Details
Review supported optics, cables, software, management protocols, and environment-specific compatibility guidance.
The Cisco ASR1001-HX runs Cisco IOS XE Software and is compatible with the following
Power Supplies
✓
ASR1KX-AC-750W-R (AC, used in ASR1001-HX)
✓
ASR1KX-DC-950W-R (DC, used in ASR1001-HX)
Crypto Module
✓
ASR1001HX-IPSECHW — Cisco ASR1001-HX hardware crypto module
Transceivers
✓
Supports Cisco-qualified SFP and SFP+ optical and copper transceivers on all 16 built-in ports. Supports CPAK transceivers on the EPA-1x100GE Ethernet Port Adapter (ASR1002-HX only — not applicable to ASR1001-HX built-in ports).
Software
✓
Cisco IOS XE (Denali 16.3 and later releases)
✓
Cisco SD-WAN (via IOS XE with Cisco DNA subscription licensing)
Licensing (Throughput Upgrades)
✓
FLSA1-HX-2.5-10G, FLSA1-HX-5-10G, FLSA1-HX-10-20G, FLSA1-HX-20-40G, FLSA1-HX-40-60G, FLSA1-HX-60-100G
For compatibility verification specific to your environment, contact our engineering team: +1 214 607-4800 or sales@whaleycomm.com
