NEW
Cisco

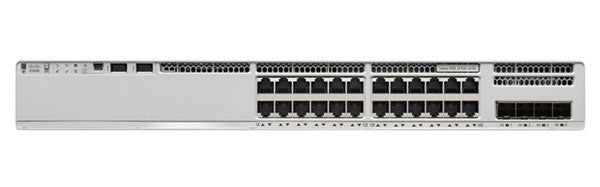

Cisco C9200L-24T-4G-E New — 24-Port GbE 4x1G Uplink Switch
MPN: C9200L-24T-4G-E
Request Bulk Quote
Lifetime
Warranty
ISO 9001
Certified Testing
R2v3
Responsible Refurb
25+
Years
5K+
Customers
ISO
Certified
✓
Tested
Every WhaleyComm unit is professionally tested, reset to factory defaults, and certified by our in-house engineers — the same standard trusted by 5,000+ organisations across 25 years. Not a refurb marketplace. A certified lifecycle partner.
Enterprise-class access switching, straight from the factory. Backed by 25 years of enterprise trust.
This listing is for a brand-new Cisco C9200L-24T-4G-E Catalyst 9200L switch. As a new-in-box unit, it ships in original Cisco packaging with all factory accessories included. The C9200L-24T-4G-E delivers 24 x 10/100/1000 Mbps copper downlink ports and 4 fixed 1G SFP uplinks under the Network Essentials software license, making it a purpose-built access layer platform for enterprise branch offices, campus edge deployments, and mid-market networks that demand proven Cisco reliability.Powered by Cisco's UADP 2.0 Mini ASIC and running Cisco IOS XE, the C9200L-24T-4G-E delivers a non-blocking switching capacity of 56 Gbps and a forwarding rate of 83.33 Mpps. It supports Layer 3 routing protocols including static routing, RIP, OSPF, and EIGRP, and integrates natively with Cisco DNA Center for policy-based automation, zero-touch provisioning, and network assurance. Optional StackWise-80 stacking expands the platform to a single management and control plane across multiple switches with up to 80 Gbps of stack bandwidth.
WhaleyComm has been supplying enterprise-grade Cisco networking hardware to 5,000+ customers across North America for 25+ years. Purchasing through WhaleyComm gives you a new Cisco unit at a competitive price point, backed by our industry-leading Lifetime Warranty and ISO 9001-certified support team.
Technical Specifications
Part Number
C9200L-24T-4G-E
Product Family
Cisco Catalyst 9200L
Switch Type
Layer 3
Downlink Ports
24 x 10/100/1000 Mbps copper (RJ-45), data only (non-PoE)
Uplink Ports
4 x 1G fixed SFP
Switching Capacity
56 Gbps
Forwarding Rate
83.33 Mpps
Stack Bandwidth
80 Gbps (optional StackWise-80)
DRAM
2 GB
Flash Memory
4 GB
MAC Address Table
16,000 entries
VLANs Supported
1,024
Switched Virtual Interfaces (SVIs)
512
Packet Buffer
6 MB
Jumbo Frame Support
9,198 bytes
Default Power Supply
PWR-C5-125WAC
Fans
Fixed redundant (dual)
Software
Cisco IOS XE, Network Essentials
Console Ports
RJ-45-to-DB9, USB-C, USB
Form Factor
1U rack-mountable
Dimensions (H x W x D)
1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm)
Condition
New
Ideal Use Cases
Enterprise Campus Access Layer
Deploy the C9200L-24T-4G-E as a wired access switch at the campus edge, connecting endpoints such as workstations, IP desk phones with independent power, and printers to the network with full Gigabit throughput per port.
Branch Office Connectivity
The compact 1U form factor and zero-touch Plug and Play provisioning make this switch ideal for rapidly deploying consistent, policy-driven connectivity at branch locations with minimal on-site IT involvement.
SMB and Mid-Market Core Switching
For organizations that need enterprise-grade Layer 3 routing—including OSPF and EIGRP—without PoE requirements, this switch delivers scalable, secure core connectivity at a practical price point.
Stackable Infrastructure Build-Out
With optional StackWise-80 support, multiple C9200L-24T-4G-E units can be combined into a single logical switch, providing a single management plane and up to 384 access ports as the network grows.
Cisco DNA Center-Managed Network
Integrate the C9200L-24T-4G-E directly into a Cisco DNA Center-managed environment to enable centralized automation, network assurance, and policy-based segmentation across the enterprise.
What's Included
Cisco C9200L-24T-4G-E Catalyst 9200L Switch (new)
PWR-C5-125WAC default AC power supply
RJ-45-to-DB9 console cable
Rack-mount kit
Power cord
Lifetime Warranty — No Time Limits. No Questions.
Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it. We have stood behind our hardware for 25 years and 5,000+ customers — that is not a marketing line, it is our operating standard.
Compatibility Details
Review supported optics, cables, software, management protocols, and environment-specific compatibility guidance.
COMPATIBLE PLATFORMS
The Cisco C9200L-24T-4G-E is compatible with the following Cisco platforms and accessories
✓
Stacking: Compatible with other C9200L fixed-uplink models via optional C9200L-STACK-KIT= using StackWise-80 (80 Gbps).
✓
Not compatible with C9200 modular SKUs or Catalyst 2960-X/2960-XR Series for stacking.
COMPATIBLE OPTICS & CABLES
✓
Uplink Transceivers: Accepts standard Cisco 1G SFP modules in the 4 fixed uplink ports.
✓
Refer to the Cisco Transceiver Modules Compatibility Matrix for supported SFP part numbers.
SOFTWARE COMPATIBILITY
✓
Software: Cisco IOS XE.
MANAGEMENT & AUTOMATION
✓
Management Platforms: Cisco DNA Center (Catalyst Center), Cisco Identity Services Engine (ISE), Cisco Meraki Dashboard (via Catalyst 9200L-M migration path).
ADDITIONAL COMPATIBILITY
✓
Network Essentials license included.
✓
Network Advantage license upgrade available separately.
For compatibility verification specific to your environment, contact our engineering team: +1 214 607-4800 or sales@whaleycomm.com
Shipping & Returns
Clear fulfilment, tracking, return, warranty, and support information for enterprise hardware orders.
Shipping
Orders typically ship within 1-2 business days after payment confirmation. Tracking details are shared once the order has been dispatched.
Returns
Eligible products can be returned according to WhaleyComm's return policy. For DOA, warranty, or product-related issues, contact the support team for replacement or resolution.
Frequently Asked Questions
Product-specific answers about compatibility, testing, warranty, fulfilment, and purchase confidence.
No. The C9200L-24T-4G-E is a data-only model and does not support PoE or PoE+ on any port. It is designed for environments where connected devices have independent power sources. If PoE is required, consider the C9200L-24P-4G-E variant instead.
Yes, with the optional StackWise-80 kit the C9200L-24T-4G-E can be stacked with other C9200L fixed-uplink models, providing up to 80 Gbps of stack bandwidth and a single management plane. Mixed stacking between C9200L and C9200 modular SKUs is not supported.
The C9200L-24T-4G-E ships with the Network Essentials license under Cisco IOS XE. Network Essentials includes core Layer 2 and Layer 3 features, quality of service, and access control. Advanced features such as SD-Access and enhanced assurance require a separate Cisco DNA subscription license.
Yes. Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it at no cost — no time limits, no questions asked.
Every unit goes through our ISO 9001-certified testing process: full power-on diagnostics, port-by-port functionality testing, firmware verification, factory reset, and final inspection. A Certificate of Testing ships with every unit.
